20mm UM12 Grade Carbide Rod with Two Holes
20mm UM12 Grade Carbide Rod with Two Holes
SKU:SOL-f3bc2f
High-precision 20mm UM12 Grade Carbide Rod for industrial machining needs. Polished finish, 40-degree precision ground, ISO h6 tolerance.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
20mm UM12 Grade Carbide Rod with Two Holes
$89.99
Quantity: 1
Claim Your Seller Account
20mm UM12 Grade Carbide Rod with Two Holes
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

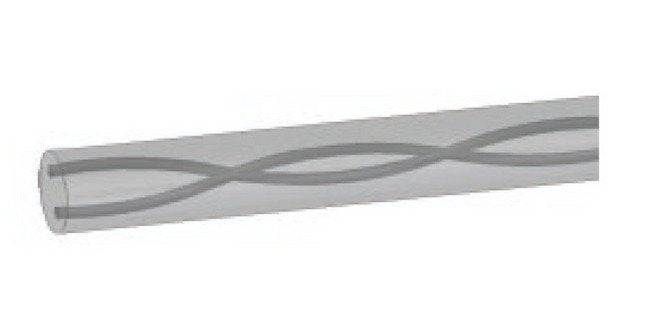

Boost your precision machining capabilities with our 20mm Diameter UM12 Grade Carbide Rod. This robust rod features a polished finish, 40-degree precision ground with two 1.50mm holes, and exacting length tolerances. Crafted from top-grade carbide, this rod ensures superior performance in industrial settings. Compliant with ISO h6 tolerance standards and meticulously engineered for optimal results.
Product Specifications

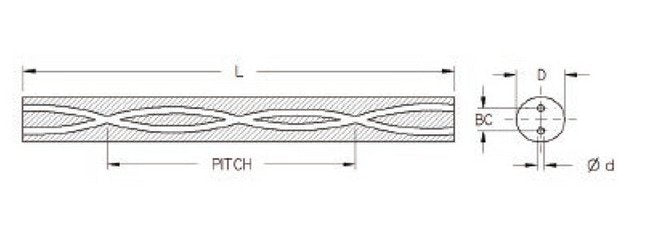

Classifications Between Centers Bc Diameter
6.6 mm
Classifications Between Centers Bc Diameter Tolerance
±0.50 mm
Classifications Brands
Ultra-Met®
Classifications Carbide Grade
UM12
Classifications Diameter
20 mm
Classifications Finish
Polished
Classifications Hole D
1.50 mm
Classifications Hole D Tolerance
0.25 mm
Classifications International Organization For Standardization I
h6
Classifications Length
330 mm
Classifications Length Tolerance
+5 mm | 0 mm
Classifications Material
Carbide
Classifications Note
All inventory subject to prior sales.
Classifications Pitch
74.88 mm
Classifications Shipping Weight
1.724818226 Kilogram
