20VAC Wall Plug-In Power Supply, Level VI, 600mA w/ 2m Cord
20VAC Wall Plug-In Power Supply, Level VI, 600mA w/ 2m Cord
SKU:WAL-f6b670
Upgrade to our efficient 20VAC Wall Plug-In Power Supply, ideal for consumer electronics or institutional applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
20VAC Wall Plug-In Power Supply, Level VI, 600mA w/ 2m Cord
$24.99
Quantity: 1
Claim Your Seller Account
20VAC Wall Plug-In Power Supply, Level VI, 600mA w/ 2m Cord
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your power supply with our 20VAC Wall Plug-In, offering high efficiency and precise voltage output (± 5%) at 600mA. This reliable supply boasts UL/cUL safety certification, Class 2 rating, and DOE/CEC and RoHS compliance. With a compact design and included 2m cord, it's perfect for consumer electronics or institutional use.
Product Specifications
Mechanical Parameters Case Type
Thermoplastic Molded Enclosure
Mechanical Parameters Minimum Output Cord Length
6 ft
Mechanical Parameters Output Cord Size
24 AWG
Note Note
DOE/CEC Compliance: This power supply meets the minimum efficiency levels for direct operation as defined by Department of Energy (DOE) Docket Number EERE-2008-BT-STD-0005-0219.RoHS Compliance: As of manufacturing date February 2005, all standard products meet the requirements of 2011/65/EU, known as the RoHS initiative.Made in China.
Specifications 2007 Eisa Efficiency
VI
Specifications Average Efficiency
82.96 %

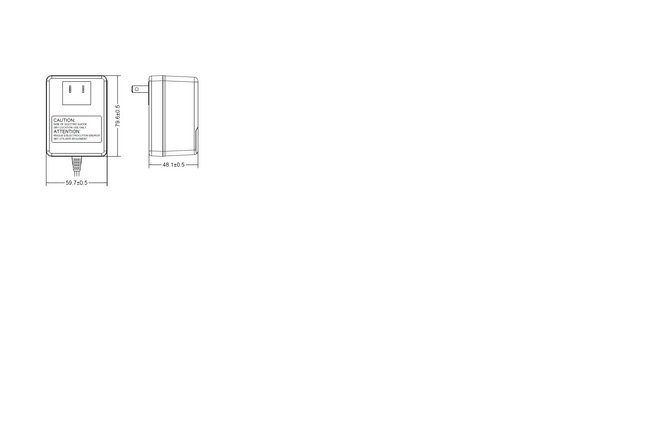

Specifications Depth
48.1 mm
Specifications Height
79.6 mm
Specifications Input Operating Frequency
60 Hz
Specifications Input Plug
North America
Specifications Intended Applications
External Power Source
Specifications Length
59.7 mm
Specifications Maximum Temperature Rise At Rated Load
30 ºC
Specifications Maximum Temperature Rise On Enclosure Surface
45 ºC
Specifications Mounting Configuration
Wall Plug-In
Specifications No Load Power Stand By
⤠0.21 W
Specifications Operating Temperature Range
-10 to +40 ºC
Specifications Output Type
AC
Specifications Output Voltage
20.0 V
Specifications Power Supply Ul Rating
Class 2
Specifications Primary Excitation Current
< 4 mA
Specifications Primary Input Voltage Ac
120 V
Specifications Secondary No Load Reference Voltage Ac
< 25.0 V
Specifications Secondary Output Current Ac
600 mA
Specifications Secondary Output Voltage Ac At Secondary Rated Cu
20 V
Specifications Stock
Yes
Specifications Tolerance For Secondary Output Voltage Ac
± 5 %
