20VAC Wall Plug-In Power Supply - Level VI, cULus Certified
20VAC Wall Plug-In Power Supply - Level VI, cULus Certified
SKU:WAL-269733
High-efficiency 20VAC Wall Plug-In Power Supply, cULus certified, ideal for consumer and institutional use.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
20VAC Wall Plug-In Power Supply - Level VI, cULus Certified
$29.99
Quantity: 1
Claim Your Seller Account
20VAC Wall Plug-In Power Supply - Level VI, cULus Certified
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

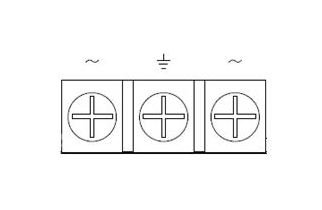

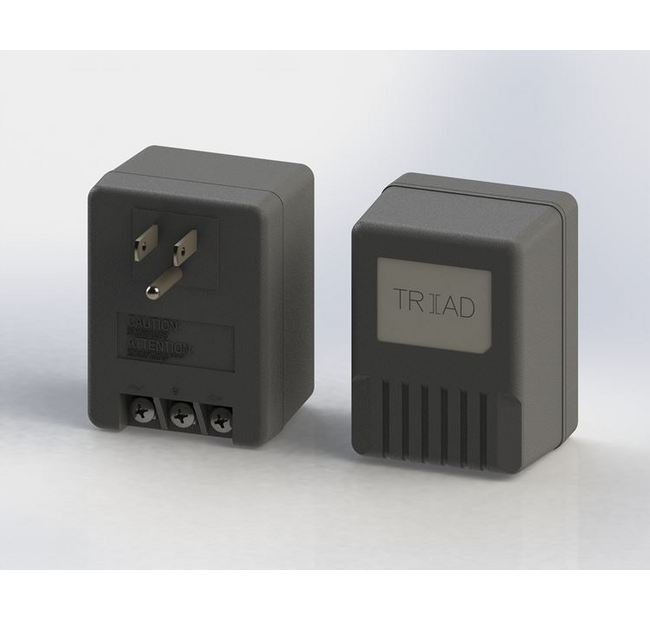

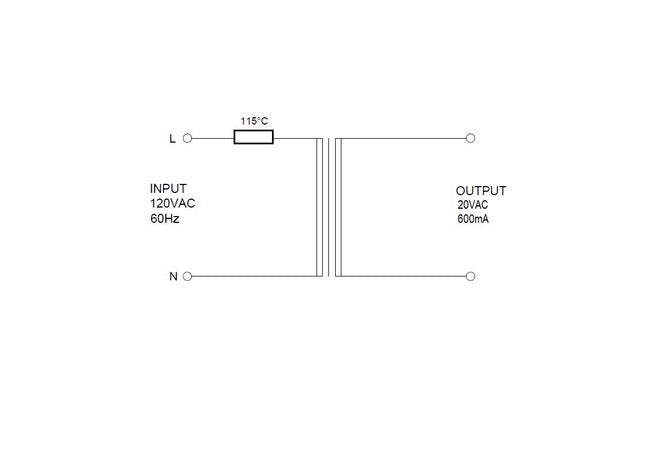

The 20VAC Wall Plug-In Power Supply is a high-efficiency Level VI transformer designed to meet the demanding power requirements of both consumer and institutional applications. With a primary input voltage of 120VAC, this power supply delivers a stable secondary output voltage of 20VAC at 600mA. It boasts a compact design with screw terminals for easy installation and pass-through ground for added safety. UL/cUL certified and compliant with Class 2 power supply UL rating, this power supply ensures reliable performance and peace of mind.
Product Specifications
Mechanical Parameters Case Type
Thermoplastic Molded Enclosure
Specifications 2007 Eisa Efficiency
VI
Specifications Average Efficiency
82.96 %

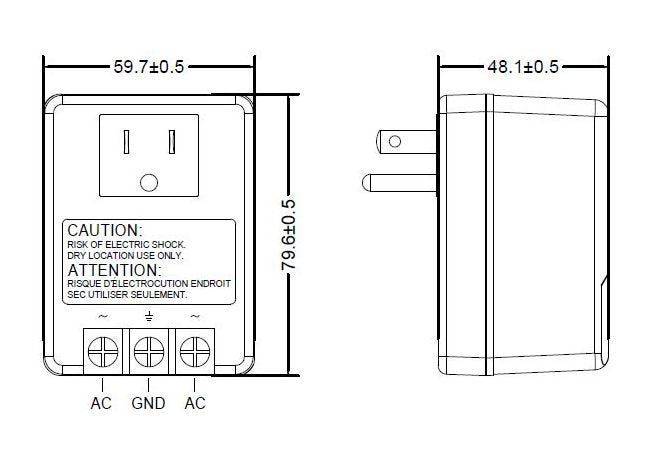

Specifications Depth
48.1 mm
Specifications Height
79.6 mm
Specifications Input Operating Frequency
60 Hz
Specifications Input Plug
North America
Specifications Intended Applications
External Power Source
Specifications Length
59.7 mm
Specifications Maximum Temperature Rise At Rated Load
30 ºC
Specifications Maximum Temperature Rise On Enclosure Surface
45 ºC
Specifications Mounting Configuration
Wall Plug-In
Specifications No Load Power Stand By
⤠0.21 W
Specifications Operating Temperature Range
-10 to +40 ºC
Specifications Output Type
AC
Specifications Output Voltage
20.0 V
Specifications Power Supply Ul Rating
Class 2
Specifications Primary Excitation Current
< 4 mA
Specifications Primary Input Voltage Ac
120 V
Specifications Secondary No Load Reference Voltage Ac
< 25.0 V
Specifications Secondary Output Current Ac
600 mA
Specifications Secondary Output Voltage Ac At Secondary Rated Cu
20 V
Specifications Stock
Yes
Specifications Tolerance For Secondary Output Voltage Ac
± 5 %
