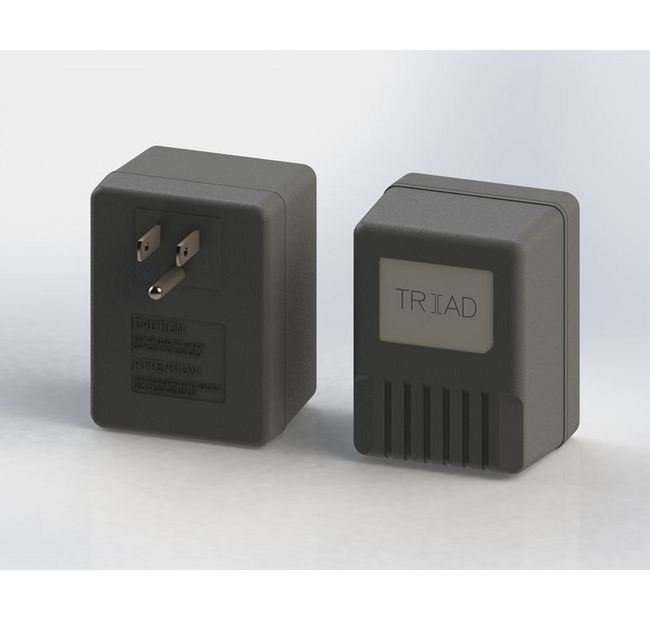

20VAC Wall Plug-In Power Supply - Level VI Efficiency, 600mA Output
20VAC Wall Plug-In Power Supply - Level VI Efficiency, 600mA Output
SKU:WAL-b2c374
Enhance your power setup with our 20VAC Wall Plug-In. Level VI efficiency, 600mA output, UL/cUL certified.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
20VAC Wall Plug-In Power Supply - Level VI Efficiency, 600mA Output
$24.99
Quantity: 1
Claim Your Seller Account
20VAC Wall Plug-In Power Supply - Level VI Efficiency, 600mA Output
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

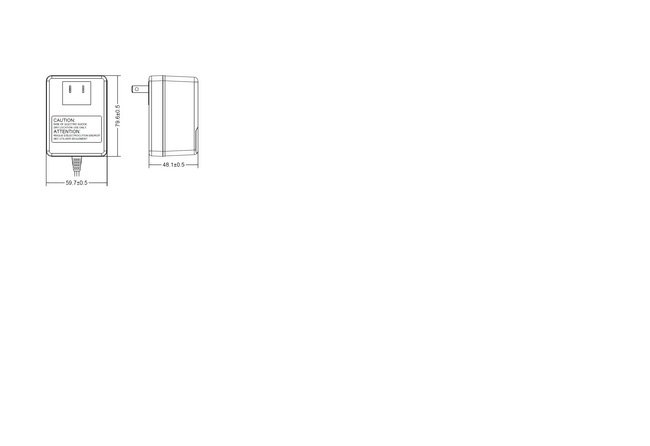

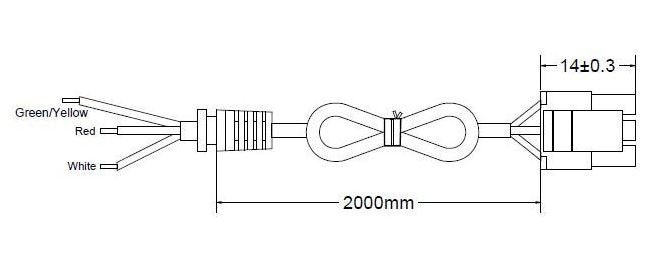

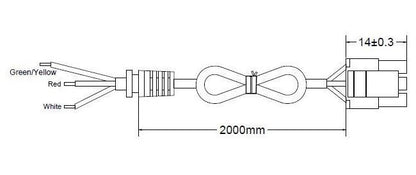

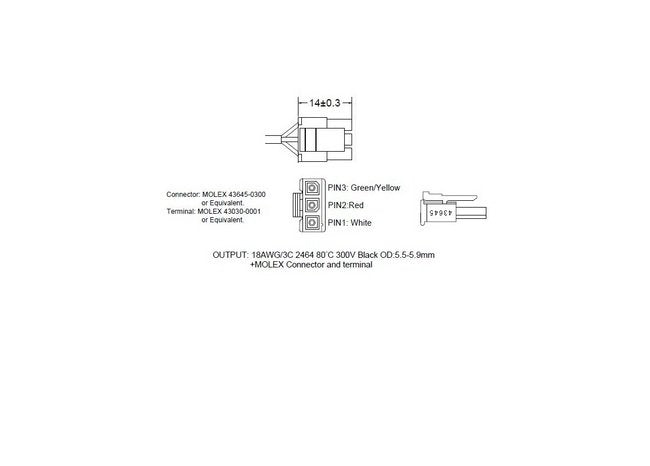

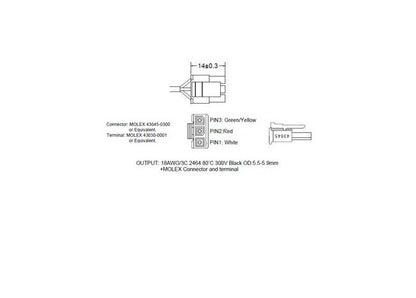

Upgrade your power supply with our 20VAC Wall Plug-In Power Supply. With a Level VI efficiency rating and 600mA output, this product offers reliable power for various applications. Measuring 79.6mm (H) x 59.7mm (W) x 48.1mm (D), it features a 2-meter cord and 3-terminal Molex design with pass-through ground. This power supply is UL/cUL certified, meeting stringent safety standards for peace of mind.
Product Specifications
Mechanical Parameters Case Type
Thermoplastic Molded Enclosure
Mechanical Parameters Minimum Output Cord Length
6 ft
Mechanical Parameters Output Cord Size
24 AWG
Specifications 2007 Eisa Efficiency
VI
Specifications Average Efficiency
82.96 %
Specifications Depth
48.1 mm
Specifications Height
79.6 mm
Specifications Input Operating Frequency
60 Hz
Specifications Input Plug
North America
Specifications Intended Applications
External Power Source
Specifications Length
59.7 mm
Specifications Maximum Temperature Rise At Rated Load
30 ºC
Specifications Maximum Temperature Rise On Enclosure Surface
45 ºC
Specifications Mounting Configuration
Wall Plug-In
Specifications No Load Power Stand By
⤠0.21 W
Specifications Operating Temperature Range
-10 to +40 ºC
Specifications Output Type
AC
Specifications Output Voltage
20.0 V
Specifications Power Supply Ul Rating
Class 2
Specifications Primary Excitation Current
< 4 mA
Specifications Primary Input Voltage Ac
120 V
Specifications Secondary No Load Reference Voltage Ac
< 25.0 V
Specifications Secondary Output Current Ac
600 mA
Specifications Secondary Output Voltage Ac At Secondary Rated Cu
20 V
Specifications Stock
No
Specifications Tolerance For Secondary Output Voltage Ac
± 5 %
