20VAC Wall Plug-In Power Supply with Level VI Efficiency and UL Certification
20VAC Wall Plug-In Power Supply with Level VI Efficiency and UL Certification
SKU:WAL-1d774c
Power up efficiently with the 20VAC Wall Plug-In Power Supply, featuring Level VI efficiency and UL certification.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
20VAC Wall Plug-In Power Supply with Level VI Efficiency and UL Certification
$29.99
Quantity: 1
Claim Your Seller Account
20VAC Wall Plug-In Power Supply with Level VI Efficiency and UL Certification
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

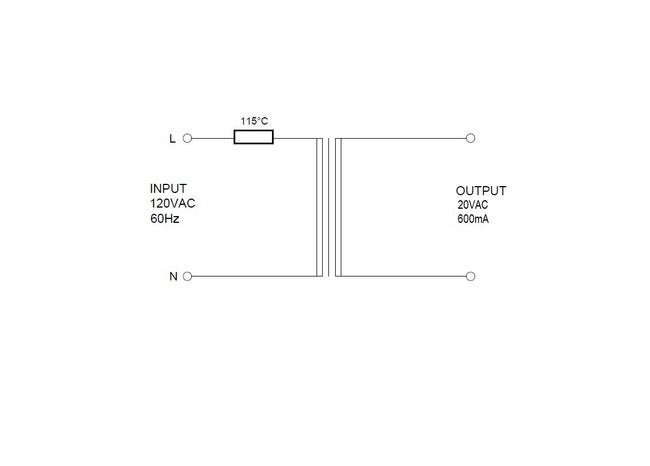

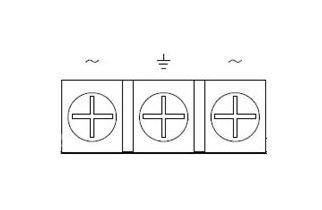

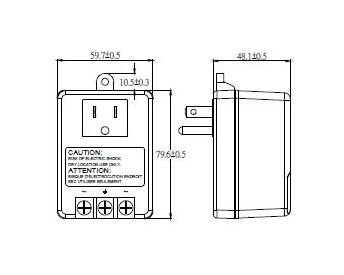

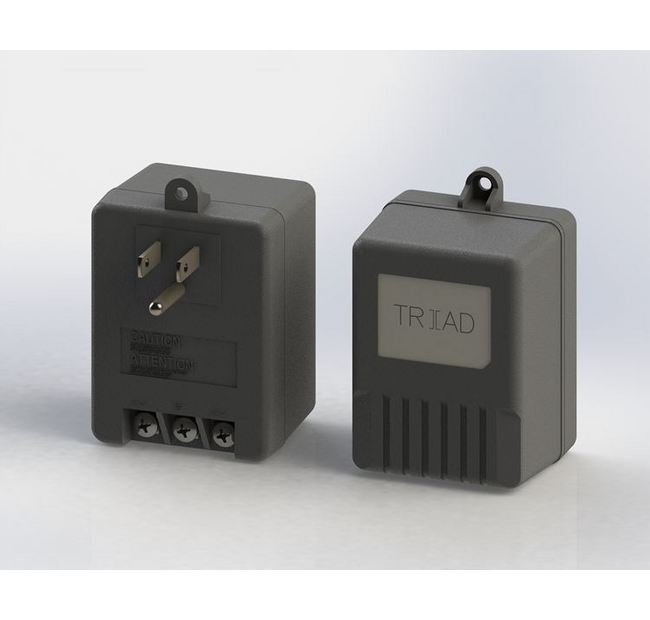

The 20VAC Wall Plug-In Power Supply is a reliable solution designed for AC power applications. With an output of 20 VAC @ 600mA and Level VI efficiency, this power supply ensures optimal performance and energy savings. Equipped with screw terminals with pass-through ground and a mounting tab, installation is convenient and secure. Measuring at 79.6mm in height, 59.7mm in width, and 48.1mm in depth, this power supply meets UL safety standards for peace of mind. Ideal for external power sources, this power supply is a versatile option for both consumer and institutional buyers.
Product Specifications
Mechanical Parameters Case Type
Thermoplastic Molded Enclosure
Specifications 2007 Eisa Efficiency
VI
Specifications Average Efficiency
82.96 %
Specifications Depth
48.1 mm
Specifications Height
79.6 mm
Specifications Input Operating Frequency
60 Hz
Specifications Input Plug
North America
Specifications Intended Applications
External Power Source
Specifications Length
59.7 mm
Specifications Maximum Temperature Rise At Rated Load
30 ºC
Specifications Maximum Temperature Rise On Enclosure Surface
45 ºC
Specifications Mounting Configuration
Wall Plug-In
Specifications No Load Power Stand By
⤠0.21 W
Specifications Operating Temperature Range
-10 to +40 ºC
Specifications Output Type
AC
Specifications Output Voltage
20.0 V
Specifications Power Supply Ul Rating
Class 2
Specifications Primary Excitation Current
< 4 mA
Specifications Primary Input Voltage Ac
120 V
Specifications Secondary No Load Reference Voltage Ac
< 25.0 V
Specifications Secondary Output Current Ac
600 mA
Specifications Secondary Output Voltage Ac At Secondary Rated Cu
20 V
Specifications Stock
No
Specifications Tolerance For Secondary Output Voltage Ac
± 5 %
