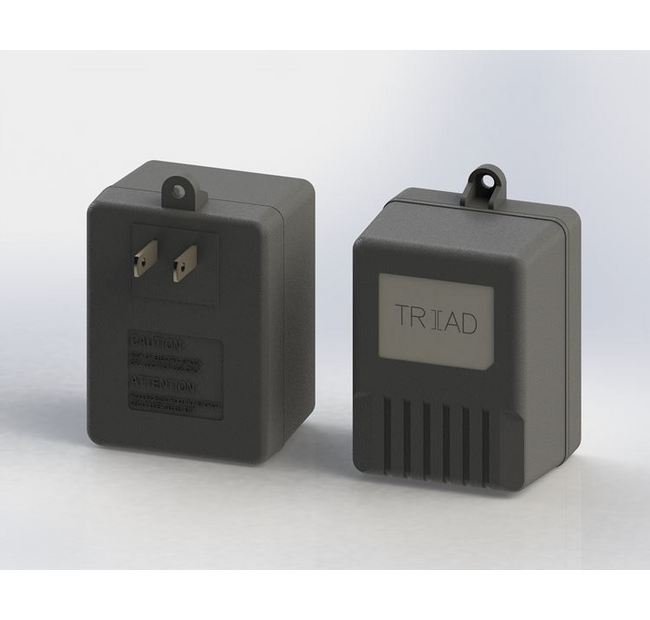

20VAC Wall Plug-In Power Supply with Mounting Tab
20VAC Wall Plug-In Power Supply with Mounting Tab
SKU:WAL-c844e1
Reliable 20VAC Power Supply with UL Class 2 rating & Level VI efficiency for efficient power delivery. Compact design with mounting tab for easy installation.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
20VAC Wall Plug-In Power Supply with Mounting Tab
$24.99
Quantity: 1
Claim Your Seller Account
20VAC Wall Plug-In Power Supply with Mounting Tab
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

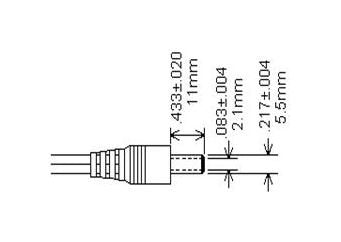

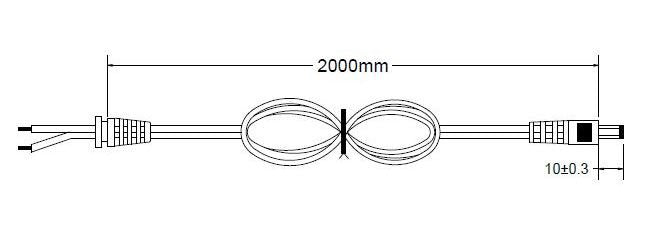

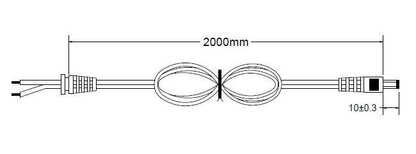

The 20VAC Wall Plug-In Power Supply is a reliable and efficient solution for your power needs. With a primary input voltage of 120VAC, operating frequency of 60Hz, and secondary output voltage of 20V, it delivers a stable power output of 600mA. This power supply meets UL Class 2 rating standards and Level VI efficiency requirements, ensuring high performance and energy efficiency. The compact design with a 2-meter cord and a 5.5x2.1mm connector, along with a convenient mounting tab, makes installation easy and versatile. Ideal for external power sources in various applications.
Product Specifications
Mechanical Parameters Case Type
Thermoplastic Molded Enclosure
Mechanical Parameters Minimum Output Cord Length
6 ft
Mechanical Parameters Output Cord Size
24 AWG
Specifications 2007 Eisa Efficiency
VI
Specifications Average Efficiency
82.96 %

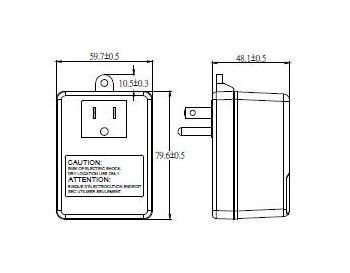

Specifications Depth
48.1 mm
Specifications Height
79.6 mm
Specifications Input Operating Frequency
60 Hz
Specifications Input Plug
North America
Specifications Intended Applications
External Power Source
Specifications Length
59.7 mm
Specifications Maximum Temperature Rise At Rated Load
30 ºC
Specifications Maximum Temperature Rise On Enclosure Surface
45 ºC
Specifications Mounting Configuration
Wall Plug-In
Specifications No Load Power Stand By
⤠0.21 W
Specifications Operating Temperature Range
-10 to +40 ºC
Specifications Output Type
AC
Specifications Output Voltage
20.0 V
Specifications Power Supply Ul Rating
Class 2
Specifications Primary Excitation Current
< 4 mA
Specifications Primary Input Voltage Ac
120 V
Specifications Secondary No Load Reference Voltage Ac
< 25.0 V
Specifications Secondary Output Current Ac
600 mA
Specifications Secondary Output Voltage Ac At Secondary Rated Cu
20 V
Specifications Stock
No
Specifications Tolerance For Secondary Output Voltage Ac
± 5 %
