20VAC Wall Plug-In Power Supply with Screw Terminals and Mounting Tab
20VAC Wall Plug-In Power Supply with Screw Terminals and Mounting Tab
SKU:WAL-adf05b

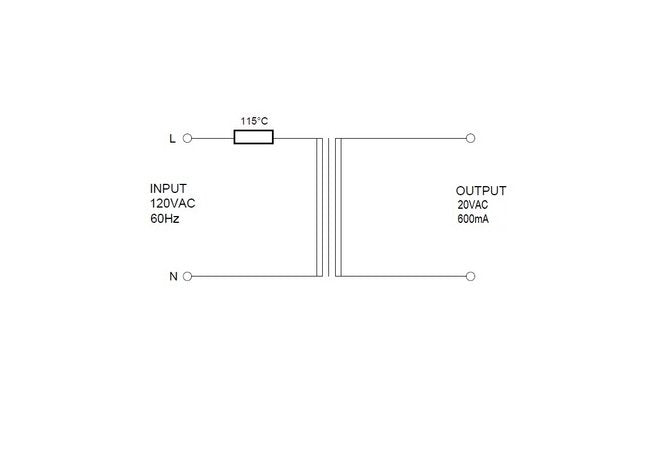

Meet your power demands efficiently with our UL Level VI 20VAC Wall Plug-In Power Supply. Primary: 120VAC, 60Hz. Secondary: 20VAC, 600mA.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
20VAC Wall Plug-In Power Supply with Screw Terminals and Mounting Tab
$29.99
Quantity: 1
Claim Your Seller Account
20VAC Wall Plug-In Power Supply with Screw Terminals and Mounting Tab
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

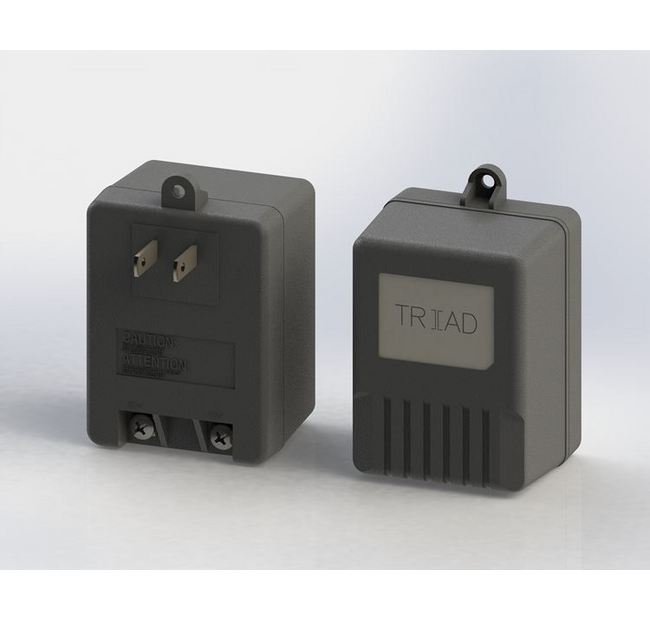

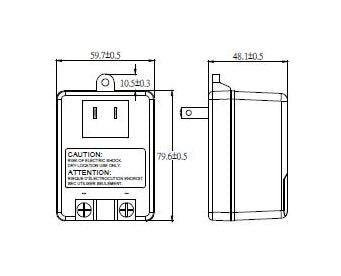

Upgrade your power sourcing with our 20VAC Wall Plug-In Power Supply featuring a reliable UL Level VI efficiency rating. This power supply offers a primary input voltage of 120VAC at 60Hz, with a secondary output voltage of 20VAC and current of 600mA. With temperature rise limited to 30°C at full load, screw terminals for secure connections, and a convenient mounting tab, this power supply is ideal for external power source applications. The compact dimensions of 79.6mm x 59.7mm x 48.1mm make it easy to integrate into various setups.
Product Specifications
Mechanical Parameters Case Type
Thermoplastic Molded Enclosure
Specifications 2007 Eisa Efficiency
VI
Specifications Average Efficiency
82.96 %
Specifications Depth
48.1 mm
Specifications Height
79.6 mm
Specifications Input Operating Frequency
60 Hz
Specifications Input Plug
North America
Specifications Intended Applications
External Power Source
Specifications Length
59.7 mm
Specifications Maximum Temperature Rise At Rated Load
30 ºC
Specifications Maximum Temperature Rise On Enclosure Surface
45 ºC
Specifications Mounting Configuration
Wall Plug-In
Specifications No Load Power Stand By
⤠0.21 W
Specifications Operating Temperature Range
-10 to +40 ºC
Specifications Output Type
AC
Specifications Output Voltage
20.0 V
Specifications Power Supply Ul Rating
Class 2
Specifications Primary Excitation Current
< 4 mA
Specifications Primary Input Voltage Ac
120 V
Specifications Secondary No Load Reference Voltage Ac
< 25.0 V
Specifications Secondary Output Current Ac
600 mA
Specifications Secondary Output Voltage Ac At Secondary Rated Cu
20 V
Specifications Stock
No
Specifications Tolerance For Secondary Output Voltage Ac
± 5 %
