21,000 Gallon Capacity Steel Frac Tank with Steam Coil
21,000 Gallon Capacity Steel Frac Tank with Steam Coil
SKU:TAN-4a0814
Heavy-duty 21,000 gal Steel Frac Tank with Steam Coil for secure industrial liquid storage. Meets strict procurement standards.
Regular price
$24,999.00
Regular price
Sale price
$24,999.00
Unit price
per
Initiate Order
21,000 Gallon Capacity Steel Frac Tank with Steam Coil
$24,999.00
Quantity: 1
Claim Your Seller Account
21,000 Gallon Capacity Steel Frac Tank with Steam Coil
$24,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

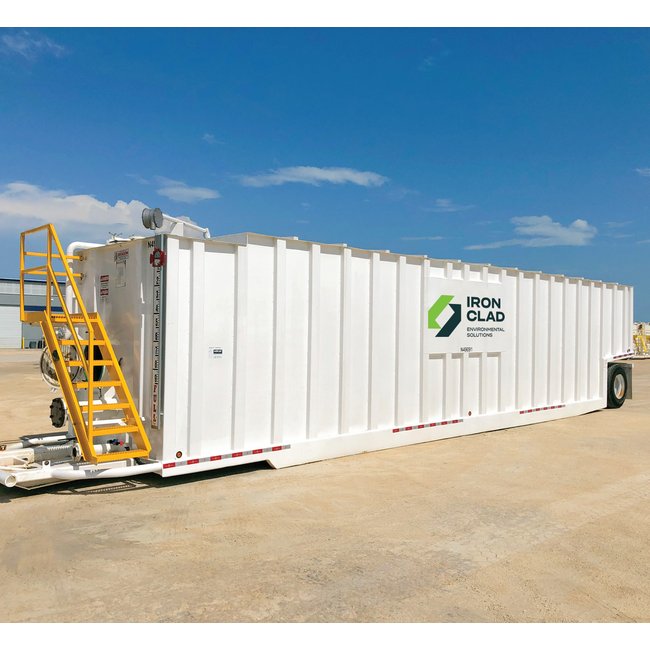

The 21,000 Gallon Capacity Steel Frac Tank with Steam Coil is an industrial-grade solution for portable water and temporary liquid storage. Constructed with heavy-gauge steel, this tank ensures secure containment on job sites. Featuring a 2-inch schedule 40 steam coil with 150 lb flanges for efficient temperature control and versatile placement options, this tank is equipped with multiple valves, manways, and a blind flange. Tailor your setup with this robust and reliable tank that meets stringent government and institutional procurement standards.
Product Specifications
Construction Floor
1/4 in. A36 Plate
Construction Floor Rails
12 in. x 20.7# Channel
Construction Side Stakes
3/16 in. A36 Plate Formed
Construction Walls
1/4 in. A36 Plate
Construction X Members
1/4 in. A36 Plate
Dimensions And Weight Axle Capacity
22,500 lb
Dimensions And Weight Axle Track Size
77.5 in
Dimensions And Weight Capacity
21,000 gal
Dimensions And Weight Height
10 ft 3.75 in.
Dimensions And Weight Length
46 ft 4 in.
Dimensions And Weight Tare Weight
27,000 lb
Dimensions And Weight Width
8 ft 6 in.
Features Blind Flange
One 4 in. (Roof)
Features Fill Line
One 3 in. with Nipple and Cap (Roof/Rear)
Features Manways
22 in. Manway in The Front, Top, and Curb
Features Steam Coils
2 in. Schedule (SCH) 40 with 2 in. 150 lb Flanges (Blind)
Features Valves
One 4 in. Drain (Front) | One 4 in. Drain with Handle (Rear) | Two 4 in. Butterfly (Front) | One 8 in. P/V Valve (Roof)
Technical Specs Brands
IRONCLAD Environmental Solutions
