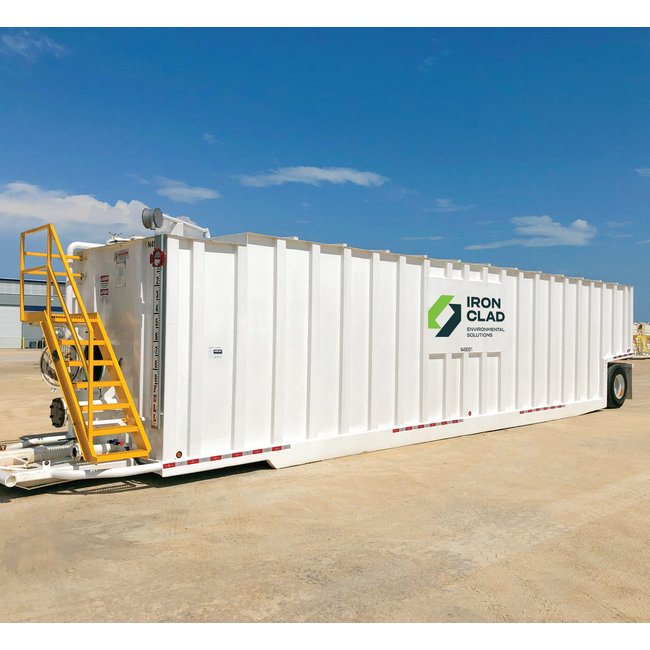

21,000 Gallon Round Bottom Steel Frac Tank
21,000 Gallon Round Bottom Steel Frac Tank
SKU:TAN-a2137a
Securely store liquids with the 21,000 Gal Round Bottom Steel Frac Tank. Versatile, durable, and compliant for industrial use.
Regular price
$8,999.99
Regular price
Sale price
$8,999.99
Unit price
per
Initiate Order
21,000 Gallon Round Bottom Steel Frac Tank
$8,999.99
Quantity: 1
Claim Your Seller Account
21,000 Gallon Round Bottom Steel Frac Tank
$8,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 21,000 Gallon Round Bottom Steel Frac Tank is a robust solution for temporary liquid storage in industrial settings. Manufactured with heavy-duty steel and advanced coating, this tank guarantees secure containment. Featuring multiple access points, essential accessories, and optional add-ons like venting and level gauges, it offers versatility for various project requirements. With dimensions meeting institutional needs and compliance with industry standards, this tank ensures reliable performance for both consumer and government buyers.
Product Specifications
Construction Coating
Steel grit blast, 100 % solids epoxy chemical resistant interior lining at 20 mil DFT, exterior coated with high solids rust inhibiting polyurethane at 5 mil DFT. Ask for chemical compatibility.
Construction Floor
1/4 Steel Plate, 4 in. Round Bottom with Integral Formed Side Channels
Construction Walls
1/4 PL Solid Welded, Smooth Inside, with Formed Channel Supports Outside
Dimensions And Weight Axle Capacity
22,500 to 25,000 Axle, Depending on Options
Dimensions And Weight Capacity
21,000 gal | 500 BBL
Dimensions And Weight Height
133 in
Dimensions And Weight Length
566 in
Dimensions And Weight Width
102 in
Features Access
Front ladder and stairway with 36 in. grating walkway to roof manway, stationary and fold down handrail system (optional).
Features Drainfill
4 in. drain at floor each end with valve, 3 in. fill elbow at roof, 4 in. flange with valve on front - flanged on inside, 4 in. flange with blind cover plate on roof, 2 in. coupling with plug on roof, 4 in. coupling with plug on roof, PV vent on roof
Features Manways
21 in. Manway On Front, Side, Rear, and Roof
Optional Accessories Heat
Four runs of steam coils 20" off ground level, spread of 50.5" apart. 2" SCH 40 piping
Optional Accessories Level Gauge
Ball Float level gauge (8" stainless steel ball "Y" support holds ball 1" minimum off floor)
Optional Accessories Venting
Flange mount blaylock LL10 P/V vent 16 oz pressure, 0.40 Z Vac setting
Technical Specs Brands
IRONCLAD Environmental Solutions
