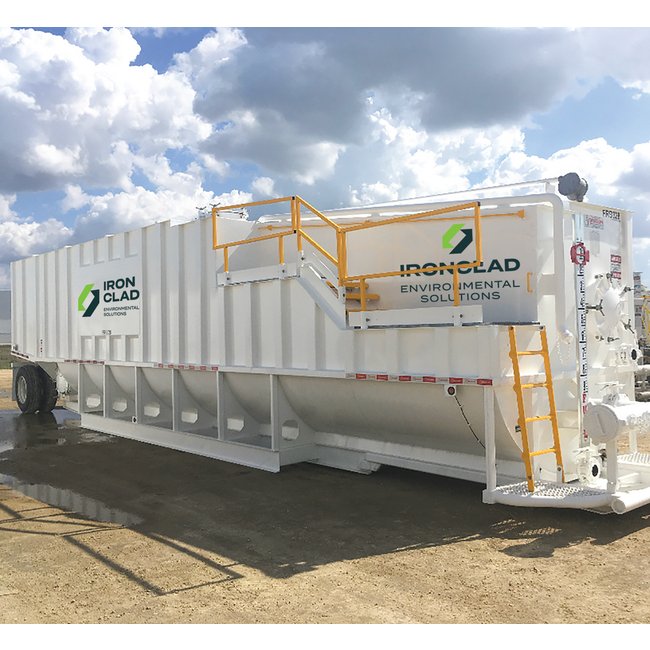

21,000 Gallon Round Bottom Steel Frac Tank with Coil Assembly
21,000 Gallon Round Bottom Steel Frac Tank with Coil Assembly
SKU:TAN-a89cf5
Sturdy 21,000 Gallon Frac Tank with Coil Assembly for secure and versatile liquid storage in industrial applications.
Regular price
$16,999.99
Regular price
Sale price
$16,999.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

Ideal for temporary liquid storage in industrial settings, the 21,000-gallon Frac Tank boasts a sturdy steel construction, ensuring secure containment. Featuring a 2-inch pipe coil assembly, multiple drains, manways, steam coils, and X-members, this tank offers versatility and reliability for various project requirements. With dimensions of 46'10-1/4" x 8'6" x 11'6-3/8" and a well-built floor, walls, and roof, it meets stringent industry standards, making it a dependable choice for your liquid storage needs.
Product Specifications
Construction Floor
1/4 in. A36 Plate
Construction Floor Rails
12 in. x 20.7# Channel
Construction Roof
1/4 in. A36 Plate
Construction Side Stakes
3/16 in. A36 Plate Formed
Construction Walls
1/4 in. A36 Plate
Construction X Members
1/4 in. A36 Plate
Dimensions And Weight Axle Capacity
22,500 lb
Dimensions And Weight Axle Track Size
77.5 in
Dimensions And Weight Capacity
21,000 gal | 500 BBL
Dimensions And Weight Height
11 ft 6-3/8 in.
Dimensions And Weight Length
46 ft 10-1/4 in.
Dimensions And Weight Tare Weight
30,000 lb
Dimensions And Weight Width
8 ft 6 in.
Features Blind Flange
One 4 in. Memi (Rear) | Two 4 in. (Roof)
Features Coil
2 in. Schedule (SCH) 40 Pipe Coil Assembly
Features Float
One Half Travel Board Float
Features Manways
One 22 in. Manway in Top, Front, and Curb
Features Steam Coils
One 3 in. External with Nipple and Cap (Roof) | One 3 in. with Nipple And Cap (Roof/Rear) | One 4 in. Pickup Line with Butterfly (Front) | One 8 in. Pickup Line with Blind (Front)
Features Valves
One 4 in. Drain (Front) | One 4 in. Drain with Handle (Rear) | One 8 in. P/V Valve (Roof)
Technical Specs Brands
IRONCLAD Environmental Solutions
