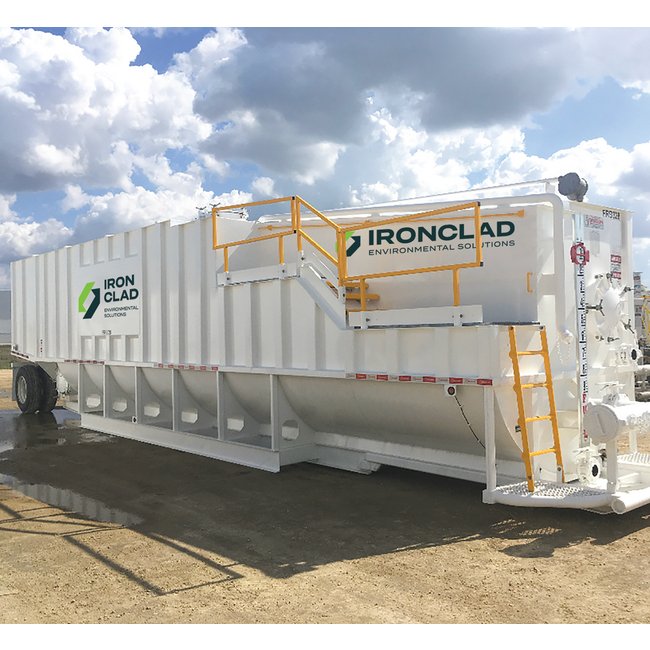

21,000 Gallon Round Bottom Steel Frac Tank with Step
21,000 Gallon Round Bottom Steel Frac Tank with Step
SKU:TAN-2290a7
Securely store liquids with our 21,000 Gal Round Bottom Steel Frac Tank. Versatile and durable for industrial needs.
Regular price
$24,999.99
Regular price
Sale price
$24,999.99
Unit price
per
Initiate Order
21,000 Gallon Round Bottom Steel Frac Tank with Step
$24,999.99
Quantity: 1
Claim Your Seller Account
21,000 Gallon Round Bottom Steel Frac Tank with Step
$24,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 21,000 Gallon Round Bottom Steel Frac Tank with Step offers a robust solution for temporary liquid storage in industrial settings. Constructed with heavy-gauge steel, this tank ensures secure containment. Features include multiple drain valves, manways for easy access, steam coils for temperature control, and a float for level monitoring. Versatile and durable, it meets stringent industry standards for reliability and performance.
Product Specifications
Construction Floor
1/4 in. A36 Plate
Construction Floor Rails
12 in. x 20.7# Channel
Construction Roof
1/4 in. A36 Plate
Construction Side Stakes
3/16 in. A36 Plate Formed
Construction Walls
1/4 in. A36 Plate
Construction X Members
1/4 in. A36 Plate
Dimensions And Weight Axle Capacity
22,5000 lb
Dimensions And Weight Axle Track Size
77.5 in
Dimensions And Weight Capacity
21,000 gal | 500 BBL
Dimensions And Weight Height
11 ft 6-3/8 in.
Dimensions And Weight Length
46 ft 10-1/4 in.
Dimensions And Weight Tare Weight
30,000 lb
Dimensions And Weight Width
8 ft 6 in.
Features Blind Flange
One 4 in. Memi (Rear) | Two 4 in. (Roof)
Features Float
One Half Travel Board Float
Features Manways
22 in. Manway in The Front, Top, and Curb
Features Steam Coils
One 3 in. External with Nipple and Cap (Roof) | One 3 in. with Nipple And Cap (Roof/Rear) | One 4 in. Pickup Line with Butterfly (Front) | One 8 in. Pickup Line with Blind (Front)
Features Valves
One 4 in. Drain (Front) | One 4 in. Drain (Rear) | One 8 in. P/V Valve (Roof)
Technical Specs Brands
IRONCLAD Environmental Solutions
