21,000 Gallon V-Bottom Steel Frac Tank - IRONCLAD Environmental Solutions
21,000 Gallon V-Bottom Steel Frac Tank - IRONCLAD Environmental Solutions
SKU:TAN-43dd49
Securely contain liquids with the 21,000 Gal V-Bottom Steel Frac Tank by IRONCLAD. Versatile, durable, and chemical-resistant for industrial applications.
Regular price
$17,599.99
Regular price
Sale price
$17,599.99
Unit price
per
Initiate Order
21,000 Gallon V-Bottom Steel Frac Tank - IRONCLAD Environmental Solutions
$17,599.99
Quantity: 1
Claim Your Seller Account
21,000 Gallon V-Bottom Steel Frac Tank - IRONCLAD Environmental Solutions
$17,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

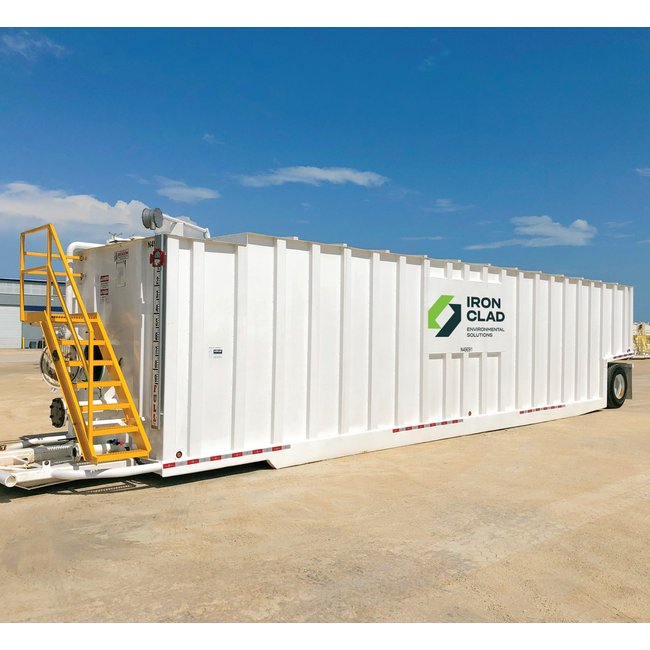

The 21,000 Gallon V-Bottom Steel Frac Tank by IRONCLAD Environmental Solutions is an ideal solution for temporary liquid storage in industrial settings. Constructed with heavy-gauge steel, this tank ensures secure containment of liquids on-site. Featuring a 4 in. drain at each end, multiple manways, and a robust coating for chemical resistance, this tank offers versatility and durability to meet your project needs with ease.
Product Specifications
Construction Coating
Steel grit blast, 100 % solids epoxy chemical resistant interior lining at 20 mil DFT, exterior coated with high solids rust inhibiting polyurethane at 5 mil DFT. Ask for chemical compatibility.
Construction Floor
1/4 PL, 4 In. V-Bottom with Integral Formed Side Channels
Construction Floor Support
10 in. Channel longitudinal runners with 8in. channel and formed 1/4 PL channel crossmembers
Construction Walls
1/4 PL Solid Welded, Smooth Inside, with Formed Channel Supports Outside
Dimensions And Weight Axle Capacity
22,500 Pound Axle with Air Brakes
Dimensions And Weight Capacity
21,000 gal | 500 BBL
Dimensions And Weight Height
9 ft 8 in.
Dimensions And Weight Length
42 ft
Dimensions And Weight Width
8 ft 6 in.
Features Access
Front ladder and stairway with 36 in. grating walkway to roof manway, stationary and fold down handrail system (optional).
Features Drainfill
4 in. drain at floor each end with valve, 3 in. fill elbow at roof, 4 in. flange with valve on front - flanged on inside, 4 in. flange with blind cover plate on roof, 2 in. coupling with plug on roof, 4 in. coupling with plug on roof, PV vent on roof
Features Manways
21 in. Manway On Front, Side, Rear, and Roof
Features Pick Up
Standard 5th Wheel King Pin
Optional Accessories Level Gauge
Ball Float level gauge (8" stainless steel ball "Y" support holds ball 1" minimum off floor)
Optional Accessories Venting
Pressure/Vacuum Relief Vent
Technical Specs Brands
IRONCLAD Environmental Solutions
