21.5" Open Frame Modular Panel PC with Intel Core i5-1245UE Processor
21.5" Open Frame Modular Panel PC with Intel Core i5-1245UE Processor
SKU:IND-2e34b1
High-performance 21.5" Open Frame Panel PC with Intel Core i5-1245UE Processor, Quad Display Support, and Rugged Design
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
21.5" Open Frame Modular Panel PC with Intel Core i5-1245UE Processor
$1,899.99
Quantity: 1
Claim Your Seller Account
21.5" Open Frame Modular Panel PC with Intel Core i5-1245UE Processor
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

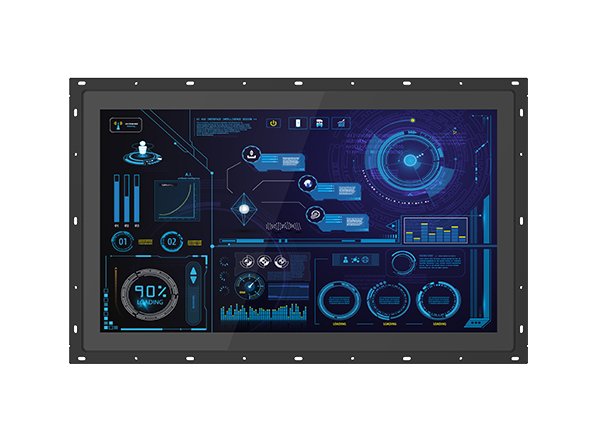

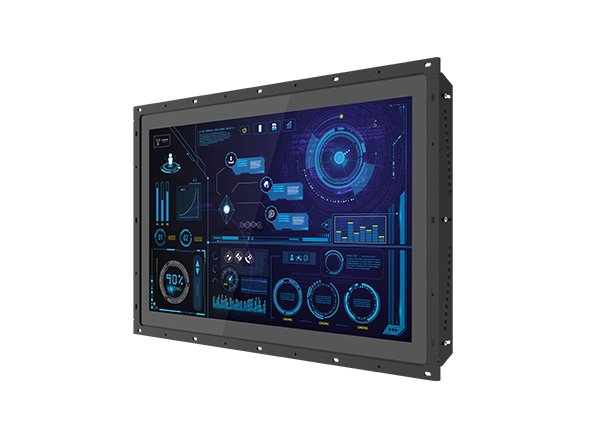

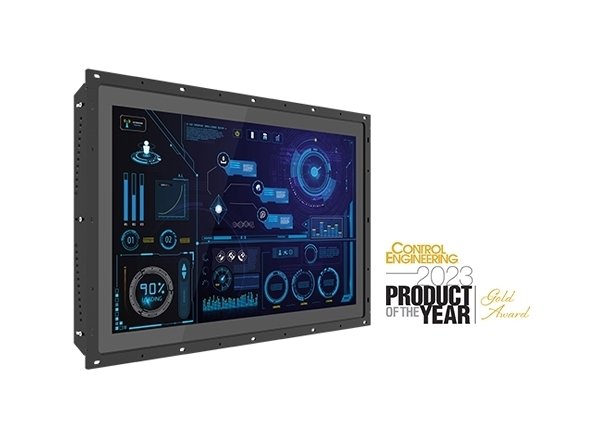

The CO-W121C-R10/P2202-i5-R10 is a high-performance Industrial Panel PC featuring a 21.5" Full HD TFT-LCD Open Frame Display. Powered by an onboard 12th Gen. Intel Core i5-1245UE Processor, this modular panel PC delivers exceptional computing power for industrial applications. With features like Quad Independent Display support, Projected Capacitive Touch, and a rugged design, this panel PC ensures reliable performance in demanding environments. Compliant with IP65 standards and boasting a fanless design, it offers wide temperature range operation from -40 to 70°C.
Product Specifications
Additional Information Additional Information

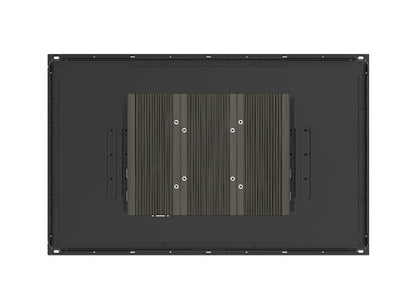

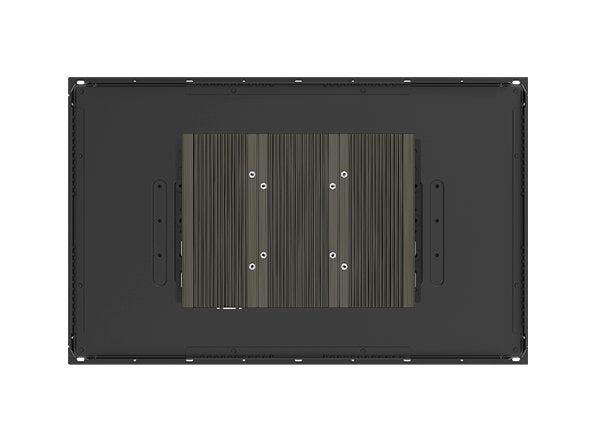

Excellent Computing PerformanceThe CO-100/P2202 series is equipped with the 12th Gen Intel® Core⢠i5/i3 U-series (Alder Lake-P) processor based on the Intel® 7 process. The U-series has a low power consumption of only 15W, boasts excellent performance with up to 10 Coreâ¢s (2P+8E), and includes the built-in Intel® Iris® Xe graphics to easily handle image classification inference performance in AI deep learning.CDS Patented TechnologyCincoze® Convertible Display System (CDS) patented technology makes field-side maintenance and future upgrades easier. Replacing a display or improving system performance only requires replacing a single component, which significantly cuts upgrade costs.Patent No. M482908Easy to InstallThe exclusive adjustable mounting bracket (Patent No.: I802427) has thickness adjustment options and supports multiple locking methods (panel and boss types), providing a simpler and more convenient integration for industrial machines using flat mount and standard mount.Patent No.: D224544, D224545, I802427Integrated StructureThe flexible and reliable design of the open-frame architecture enables deployment in equipment machines, and after removing the mounting bracket can be installed directly using the VESA mount for standalone use, or installed in a 19 rack for display function.Rugged, Safe, ReliableThe CO-100/P2202 series features a series of industrial-grade protections, such as a fanless design, wide operating temperature range (0°C to 60°C), wide range DC power input (9 to 48VDC), and IP65 dustproof/water resistant front panel for field-side HMI applications in harsh industrial environments."
Audio Audio Codec
Realtek® ALC888, High Definition Audio
Audio Line Out
1x Line-Out, Phone Jack 3.5 mm
Audio Mic In
1x Mic-in, Phone Jack 3.5 mm
Co W121c Ambient Operating Temperature With Air Flow Co W121c
0 to 60 ºC
Co W121c Backlight Mean Time Between Failures Mtbf Co W121c
50,000 h
Co W121c Brightness Co W121c
300 cd/m²
Co W121c Compliances Co W121c
Front Panel Ingress Protection (IP65)
Co W121c Construction Co W121c
One-Piece and Slim Bezel Design
Co W121c Contrast Ratio Co W121c
5000:1
Co W121c Depth Co W121c
343.7 mm
Co W121c Electromagnetic Compatibility Emc Co W121c
European Conformity (CE) | Federal Communications Commission (FCC) | Interference-Causing Equipment Standard 003 (ICES-003 Class A) | United Kingdom Conformity Assessed (UKCA)
Co W121c Electromagnetic Interference Emi Co W121c
CISPR 32 Conducted & Radiated: Class AEN/BS EN 55032 Conducted & Radiated: Class AEN/BS EN IEC 61000-3-2 Harmonic current emissions: Class AEN/BS EN61000-3-3 Voltage fluctuations & flickerFCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
Co W121c Environmental Management System Ems Co W121c
EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kVEN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/mEN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kVEN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kVEN/IEC 61000-4-6 CS: 3VEN/IEC 61000-4-8 PFMF: 50 Hz, 1A/mEN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
Co W121c Height Co W121c
63.3 mm
Co W121c Liquid Crystal Display Lcd Color Co W121c
16.7M
Co W121c Liquid Crystal Display Lcd Size Co W121c
21.5 in | 16:9
Co W121c Maximum Resolution Co W121c
1920 x 1080
Co W121c Mounting Bracket Co W121c
Pre-installed Mounting Bracket with Adjustable Design (Support 11 different stages of adjustment)
Co W121c Mounting Type Co W121c
Flat | Rack Mount | Standard | Video Electronics Standards Association (VESA)
Co W121c Non Condensing Relative Humidity Rh At 50 Degree Celsiu
80 %
Co W121c Pixel Pitch Horizontal Co W121c
0.24825 mm
Co W121c Pixel Pitch Vertical Co W121c
0.24825 mm
Co W121c Safety Co W121c
Canadian Underwriters Laboratories (cUL) | Certification Body (CB) | European Norm (EN 62368-1) | International Electrotechnical Commission (IEC) | Underwriters Laboratories (UL)
Co W121c Storage Temperature Co W121c
-20 to 60 ºC
Co W121c Touchscreen Type Co W121c
Projected Capacitive Touch
Co W121c Viewing Angle Horizontal Vertical H V Co W121c
178/178
Co W121c Weight Co W121c
7.16 kg
Co W121c Width Co W121c
550 mm
Environment Electromagnetic Compatibility Emc
CE, UKCA, FCC, ICES-003 Class AEN IEC 61000-6-4, EN IEC 61000-6-2 (24VDC Input Only)
Environment Electromagnetic Interference Emi
CISPR 32 Conducted & Radiated: Class AEN/BS EN 55032 Conducted & Radiated: Class AEN/BS EN IEC 61000-3-2 Harmonic current emissions: Class AEN/BS EN61000-3-3 Voltage fluctuations & flickerFCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
Physical Depth
190 mm
Physical Height
41.5 mm
Physical Width
254.5 mm
Power Power Button
1x ATX Power On/Off Button
Power Power Input
9 to 48 VDC, 3-Pin Terminal Block
Power Power Mode Switch
1x AT/ATX Mode Switch
Power Remote Power Onoff
1x Remote Power On/Off, 2-pin Terminal Block
Reliability And Protection Over Voltage Protection
Protection Range: 51~58VProtection Type: shut down operating voltage, re-power on at the present level to recover
Reliability And Protection Reverse Power Input Protection
Yes
