21 Series Circuit Board Supports - .187 Board Hole x .187 Chassis Hole

Name: 21 Series Circuit Board Supports - .187 Board Hole x .187 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-79770a
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-79770a

Reliable circuit board supports with .187 Board Hole x .187 Chassis Hole. Secure, durable Nylon 66 material. RoHS compliant.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 21 Series Circuit Board Supports with .187 Board Hole x .187 Chassis Hole offer reliable support and easy installation for circuit boards. Made of Nylon 66 UL94V-2 material, these support posts lock securely and can be easily removed. With a temperature range of -40 to 185F (-40 to 85C), these supports are durable and versatile. Each pack contains 500 supports, ensuring an ample supply for your needs. Compliant with RoHS standards, these supports meet stringent quality requirements for your peace of mind.

Product Specifications

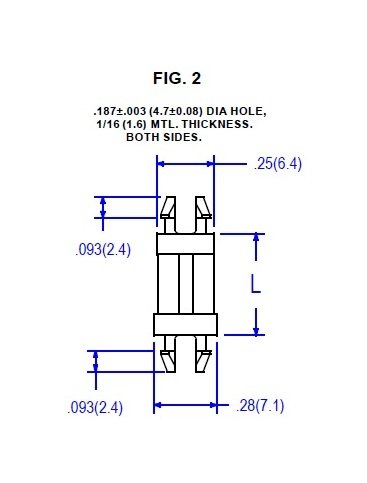

Specifications Boardchassis Hole Dia

.187 (4.8) inches (mm)

Specifications Dim L

.375 (9.6) inches (mm)

Specifications Material Code

UL94V-2

Specifications Panel Thickness

.063 (1.6) inches (mm)

Specifications Remarks Panel Thickness

Panel thickness is for both ends.

21 Series Circuit Board Supports - .187 Board Hole x .187 Chassis Hole
