21 Series Nylon Support Post (.187 Board Hole x .187 Chassis Hole)

Name: 21 Series Nylon Support Post (.187 Board Hole x .187 Chassis Hole)
Brand: All Electronics Hardware
SKU: 01C-9c38be
Price: 12.99 USD
Availability: OutOfStock

SKU:01C-9c38be

Durable 21 Series Nylon Support Post for circuit boards, easy to install and secure. RoHS compliant, temperature range -40 to 185F.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 21 Series Nylon Support Post is a versatile solution for circuit board supports. Made from durable Nylon 66 UL94V-2 material, this post offers easy installation by hand while ensuring secure locking. With a board/chassis hole diameter of .187 inches and a panel thickness of .063 inches, this support post is designed for reliability and ease of use. It is RoHS compliant, meeting industry standards for environmental responsibility and is suitable for a temperature range of -40 to 185F. Upgrade to UL94V-0 material by adding 'X' to the part number for enhanced fire safety.

Product Specifications

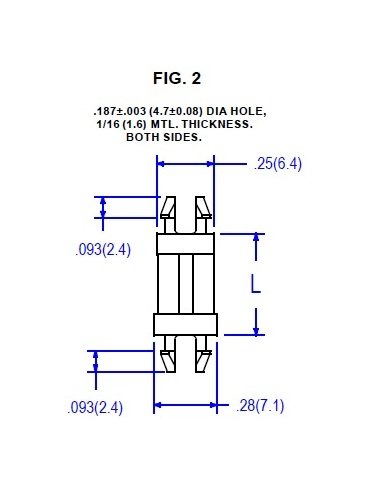

Specifications Boardchassis Hole Dia

.187 (4.8) inches (mm)

Specifications Dim L

.250 (6.4) inches (mm)

Specifications Material Code

UL94V-2

Specifications Panel Thickness

.063 (1.6) inches (mm)

Specifications Remarks Panel Thickness

Panel thickness is for both ends.
