21 Series Nylon Support Post for .187 Board Hole x .187 Chassis Hole

Name: 21 Series Nylon Support Post for .187 Board Hole x .187 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-f696e8
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-f696e8

Enhance circuit board supports with our durable Nylon 66 .187 Support Post. Easy installation, secure locking, and RoHS compliant.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 21 Series Nylon Support Post is expertly designed to enhance circuit board supports with a .187 board hole x .187 chassis hole configuration. Made from durable Nylon 66 UL94V-2 material, this support post ensures easy installation by hand, secure locking, and effortless removal by simply pinching the prong tips. With a RoHS compliant and ASTM D 4066 certification, this support post offers exceptional reliability and temperature resistance ranging from -40 to 185F (-40 to 85C). Ideal for a wide range of applications, this support post comes in a natural color and is available in a convenient packaging of 500 units per bag.

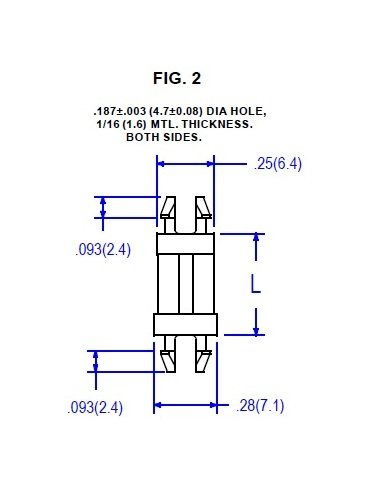

Product Specifications

Specifications Boardchassis Hole Dia

.187 (4.8) inches (mm)

Specifications Dim L

.625 (15.9) inches (mm)

Specifications Material Code

UL94V-2

Specifications Panel Thickness

.063 (1.6) inches (mm)

Specifications Remarks Panel Thickness

Panel thickness is for both ends.

21 Series Nylon Support Post for .187 Board Hole x .187 Chassis Hole
