21 Series Nylon Support Posts
21 Series Nylon Support Posts
SKU:01C-3c145f
Durable 21 Series Nylon Support Posts for secure installation and RoHS compliance
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
21 Series Nylon Support Posts
$29.99
Quantity: 1
Claim Your Seller Account
21 Series Nylon Support Posts
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

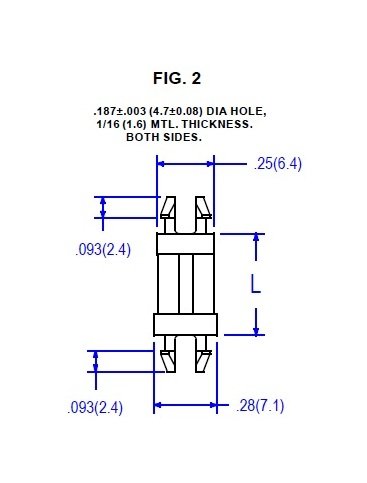

The 21 Series Nylon Support Posts are essential components for circuit board supports, designed to provide easy installation by hand with secure locking capabilities. Crafted from Nylon 66 UL94V-2 material, these support posts offer durability and reliability, meeting RoHS compliance standards and a temperature range of -40 to 185F. With a .187 board hole and .187 chassis hole diameter, these support posts ensure a precise fit for panels with a thickness of .063 inches. Ideal for institutional setups requiring ASTM D 4066 and UL File No. E157012 standards.
Product Specifications
Specifications Boardchassis Hole Dia
.187 (4.8) inches (mm)
Specifications Dim L
.500 (12.7) inches (mm)
Specifications Material Code
UL94V-2
Specifications Panel Thickness
.063 (1.6) inches (mm)
Specifications Remarks Panel Thickness
Panel thickness is for both ends.
