22 Inch (in) Height Blowdown Separator
22 Inch (in) Height Blowdown Separator
SKU:BLO-ae80ae
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
22 Inch (in) Height Blowdown Separator
$49.99
Quantity: 1
Claim Your Seller Account
22 Inch (in) Height Blowdown Separator
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Intermittent Boiler Blowoff, Hydronic S.R.V's, and other Process BlowdownsBlowdown Separators are the modern and efficient way of handling boiler intermittent blowdown. Separators have also been used for hydronic safety relief valve discharges, deaerator overflows, autoclave draining, and other high flow pressurized condensate to drain applications. The smaller diameter takes up less space then a traditional blowoff tank while providing an efficient separation of flash steam and condensate.
Product Specifications

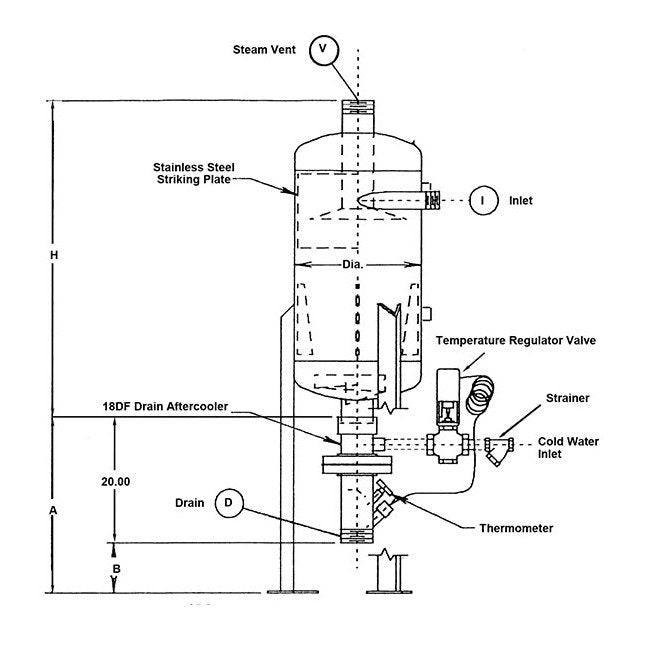

Blowdown Separator Size Diameter
14 in
Blowdown Separator Size Height
22 in
Connection Sizes Drain D
2 in | 2 1/2 in | 3 in | 4 in | 5 in | 6 in | 8 in
Connection Sizes Inlet I
1 in | 1.25 in | 1.5 in | 2 in | 2.5 in | 3 in
Connection Sizes Vent V
2 in | 2 1/2 in | 3 in | 4 in | 5 in | 6 in | 8 in
Features

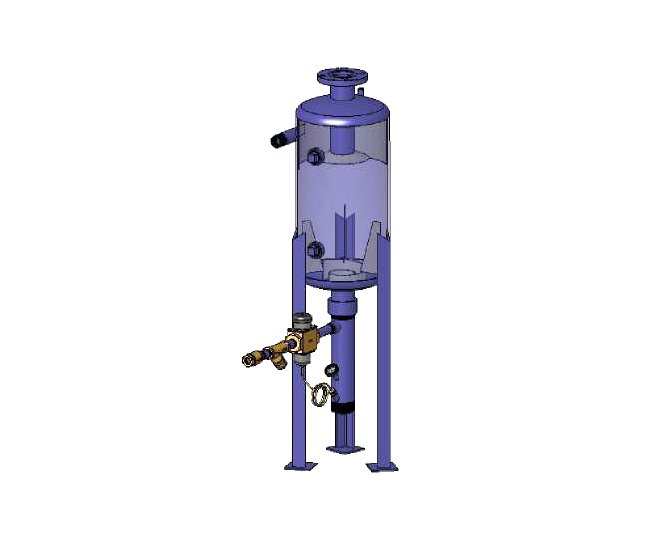

Proven Design Features - Penn has been a leading supplier of Blowdown Separators for over fifty years. This experience goes into every separator we build. Standard features like stainless steel internals and self drying design assure years of trouble free service.Cyclone Spinning Action - The tangential entry and small diameter creates a cyclone action to efficiently separate steam and condensate. The clean steam flows up through the vortex to the vent discharging quietly to atmosphere.Controls Thermal Pollution - Most Separators come packaged as shown with accessories for automatic cooling of condensate to drain to meet local sewer temperature requirements. The package shown includes a A34B Separator with A100L angle legs, A18DF aftercooler, self actuating temperature regulator valve, strainer and bimetal thermometer. Other package options are available.
Leg Length Leg Length A For 2 12 Inch In Drain
23 in
Leg Length Leg Length A For 2 Inch In Drain
22 in
Leg Length Leg Length A For 3 Inch In Drain
24 in
Leg Length Leg Length A For 4 Inch In Drain
25 in
Leg Length Leg Length A For 5 Inch In Drain
30 in
Leg Length Leg Length A For 6 Inch In Drain
34 in
Leg Length Leg Length B For 2 12 Inch In Drain
3 in
Leg Length Leg Length B For 2 Inch In Drain
2 in
Leg Length Leg Length B For 3 Inch In Drain
4 in
Leg Length Leg Length B For 4 Inch In Drain
5 in
Leg Length Leg Length B For 5 Inch In Drain
10 in
Leg Length Leg Length B For 6 Inch In Drain
14 in
Leg Length Note For Leg Length
Legs are 18" without an Aftercooler or when a A5D Manual aftercooler is used. 8" connections beveled or flanged only.
Specifications Separator Type
Blowdown
