22 mm Break-Away Swivel for Cable Pulling
22 mm Break-Away Swivel for Cable Pulling
SKU:PUL-41c633
Essential for cable pulling, this 22 mm swivel ensures safety with a 1300 lb. break load. Easily replaceable break pin for added convenience.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
22 mm Break-Away Swivel for Cable Pulling
$39.99
Quantity: 1
Claim Your Seller Account
22 mm Break-Away Swivel for Cable Pulling
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

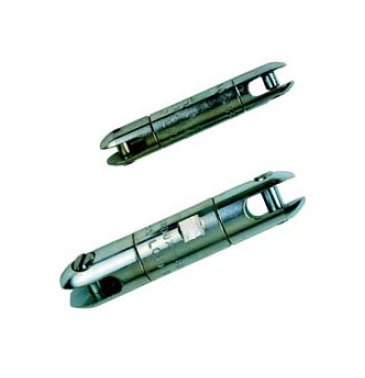

The 22 mm Break-Away Swivel is a crucial tool for fiber optic and coaxial cable pulling applications. With a robust break load of 1300 lb. (5782 N), this swivel is designed to separate at ±10% of the rated break load, ensuring the safety of the cable. In case of overload, the interior break pin fractures, allowing the swivel to detach while keeping the cable intact. The easily replaceable break pin adds to the convenience and longevity of this swivel. Please note, these swivels are not intended for use around bullwheels.
Product Specifications

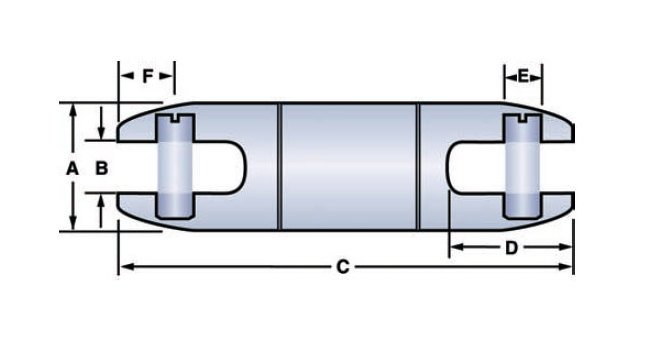

Specifications Break Load Lb
1300
Specifications Break Load N
5782
Specifications Dimension A In
7/8
Specifications Dimension A Mm
22
Specifications Dimension B In
0.38
Specifications Dimension B Mm
10
Specifications Dimension C In
4.51
Specifications Dimension C Mm
115
Specifications Dimension D In
1.06
Specifications Dimension D Mm
27
Specifications Dimension E In
0.31
Specifications Dimension E Mm
8
Specifications Dimension F In
0.53
Specifications Dimension F Mm
13
