22 mm Break-Away Swivel with 300 lb. Break Load
22 mm Break-Away Swivel with 300 lb. Break Load
SKU:PUL-8e33a2
Essential 22 mm Break-Away Swivel for fiber optic and coaxial cable pulling, with a 300 lb. break load and ±10% separation design.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
22 mm Break-Away Swivel with 300 lb. Break Load
$29.99
Quantity: 1
Claim Your Seller Account
22 mm Break-Away Swivel with 300 lb. Break Load
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

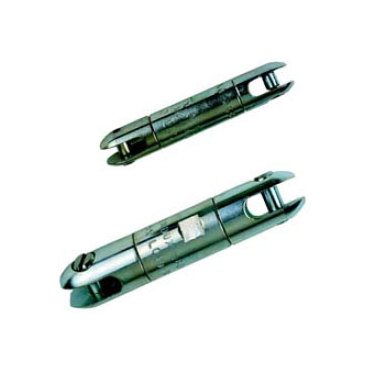

The 7/8" (22 mm) Break-Away Swivel is a crucial component for fiber optic and coaxial cable pulling applications. With a robust break load capacity of 300 pounds (1334 N), this swivel is designed to separate at ±10% of its rated break load to safeguard your cables. In the event of exceeding the load rating, the replaceable interior break pin fractures, ensuring cable integrity is maintained. Ideal for ensuring safe and efficient cable pulling while preventing damage.

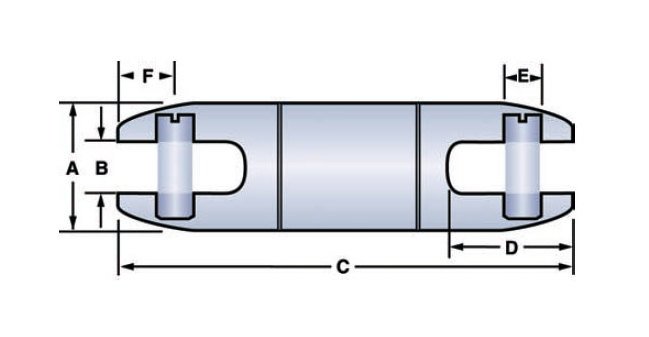

Product Specifications
Specifications Break Load Lb
300
Specifications Break Load N
1334
Specifications Dimension A In
7/8
Specifications Dimension A Mm
22
Specifications Dimension B In
0.38
Specifications Dimension B Mm
10
Specifications Dimension C In
4.51
Specifications Dimension C Mm
115
Specifications Dimension D In
1.06
Specifications Dimension D Mm
27
Specifications Dimension E In
0.31
Specifications Dimension E Mm
8
Specifications Dimension F In
0.53
Specifications Dimension F Mm
13
