22 Series Circuit Board Supports
22 Series Circuit Board Supports
SKU:01C-f2e4c3
Secure and durable circuit board supports with UL94V-2 Nylon 66 material, .156" Board Hole, .187" Chassis Hole, and RoHS compliance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
22 Series Circuit Board Supports
$29.99
Quantity: 1
Claim Your Seller Account
22 Series Circuit Board Supports
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 22 Series Circuit Board Supports are engineered for reliable installation and removal, offering a secure fit for circuit board applications. Constructed with durable UL94V-2 Nylon 66 material, these supports feature a .156-inch Board Hole and .187-inch Chassis Hole dimensions. With a temperature range of -40 to 185F (-40 to 85C) and RoHS compliance, these supports meet stringent industry standards ensuring optimal performance and safety. Whether for consumer or institutional use, these supports provide a versatile solution for a wide range of applications.

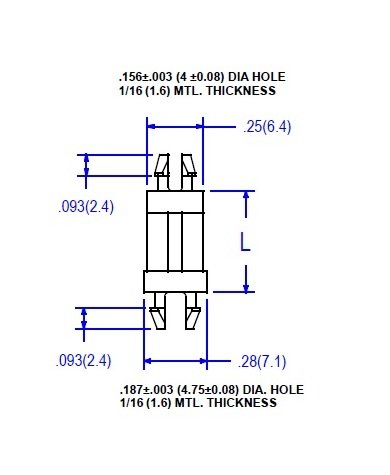

Product Specifications
Specifications Board Hole Diameter
.156 (4.0) inches (mm)
Specifications Chassis Hole Diameter
.187 (4.8) inches (mm)
Specifications Dim L
.375 (9.6) inches (mm)
Specifications Material Code
UL94V-2
Specifications Panel Thickness
.063 (1.6) inches (mm)
Specifications Remarks Panel Thickness
Panel thickness is for both ends.
