22 Series Circuit Board Supports: .156 Board Hole x .187 Chassis Hole
22 Series Circuit Board Supports: .156 Board Hole x .187 Chassis Hole
SKU:01C-35b23c
Versatile and secure circuit board supports with .156 board hole x .187 chassis hole, made of Nylon 66 UL94V-2 material, RoHS compliant, and ASTM D 4066 standard.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
22 Series Circuit Board Supports: .156 Board Hole x .187 Chassis Hole
$24.99
Quantity: 1
Claim Your Seller Account
22 Series Circuit Board Supports: .156 Board Hole x .187 Chassis Hole
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

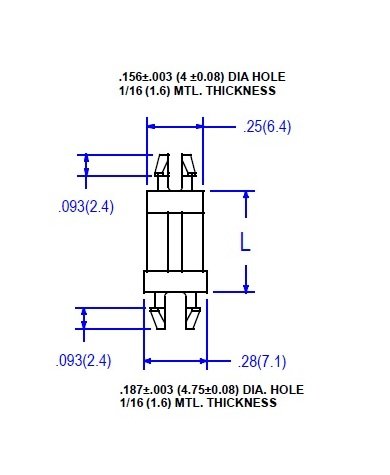

The 22 Series Circuit Board Supports feature a .156 board hole and .187 chassis hole, offering easy installation by hand and secure locking with easily removable pinching prong tips. Made of Nylon 66 UL94V-2 material, these supports come in a natural color and are RoHS compliant. With a temperature range of -40 to 185F, they are suitable for various environments. The 1.06-inch length and .063-inch panel thickness make them versatile for different applications, meeting ASTM D 4066 standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Board Hole Diameter
.156 (4.0) inches (mm)
Specifications Chassis Hole Diameter
.187 (4.8) inches (mm)
Specifications Dim L
1.06 (26.9) inches (mm)
Specifications Material Code
UL94V-2
Specifications Panel Thickness
.063 (1.6) inches (mm)
Specifications Remarks Panel Thickness
Panel thickness is for both ends.
