22 Series Circuit Board Supports - .156 Board Hole x .187 Chassis Hole - Nylon UL94V-2

Name: 22 Series Circuit Board Supports - .156 Board Hole x .187 Chassis Hole - Nylon UL94V-2
Brand: All Electronics Hardware
SKU: 01C-6ecd8d
Price: 39.99 USD
Availability: OutOfStock

SKU:01C-6ecd8d

Securely install circuit boards with ease using Nylon UL94V-2 support posts - .156" board hole, .187" chassis hole. Pack of 500.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 22 Series Circuit Board Supports feature a .156-inch board hole and a .187-inch chassis hole, making them ideal for secure installations in electronic assemblies. Crafted from Nylon UL94V-2 material, these support posts ensure both durability and safety. With a temperature range of -40 to 185F (-40 to 85C), they are designed to withstand various environmental conditions. Their easy installation and secure locking mechanism provide user-friendly convenience, while also allowing for easy removal. This product comes in a pack of 500 units, offering efficiency and reliability for your circuit board support needs.

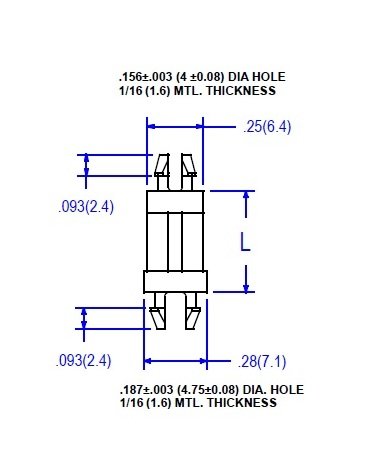

Product Specifications

Specifications Board Hole Diameter

.156 (4.0) inches (mm)

Specifications Chassis Hole Diameter

.187 (4.8) inches (mm)

Specifications Dim L

.625 (15.9) inches (mm)

Specifications Material Code

UL94V-2

Specifications Panel Thickness

.063 (1.6) inches (mm)

Specifications Remarks Panel Thickness

Panel thickness is for both ends.
