22 Series Circuit Board Supports - Nylon UL94V-2, Pack of 500

Name: 22 Series Circuit Board Supports - Nylon UL94V-2, Pack of 500
Brand: All Electronics Hardware
SKU: 01C-13067b
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-13067b

Durable 22 Series Circuit Board Supports for secure and easy installation. Pack of 500, Nylon UL94V-2 material, color: Natural.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

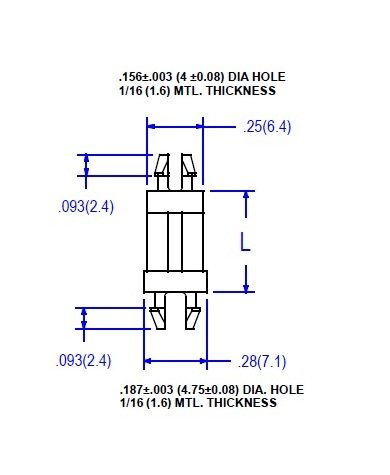

The 22 Series Circuit Board Supports are designed for effortless installation by hand, offering a secure locking mechanism while remaining easily removable by pinching prong tips. Made from durable Nylon 66 UL94V-2 material (UL94V-0 option available), these supports come in a natural color and can withstand temperatures ranging from -40 to 185F (-40 to 85C). Each pack contains 500 supports, with each support featuring a .156-inch (4.0mm) board hole and a .187-inch (4.8mm) chassis hole, suitable for panel thicknesses of .063 inches (1.6mm). Panel thickness is consistent on both ends, ensuring uniform support across installations.

Product Specifications

Specifications Board Hole Diameter

.156 (4.0) inches (mm)

Specifications Chassis Hole Diameter

.187 (4.8) inches (mm)

Specifications Dim L

.250 (6.4) inches (mm)

Specifications Material Code

UL94V-2

Specifications Panel Thickness

.063 (1.6) inches (mm)

Specifications Remarks Panel Thickness

Panel thickness is for both ends.
