22 Series Nylon Support Post .156 Board Hole x .187 Chassis Hole

Name: 22 Series Nylon Support Post .156 Board Hole x .187 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-359c3d
Price: 24.99 USD
Availability: OutOfStock

SKU:01C-359c3d

Secure and durable 22 Series Nylon Support Post for circuit boards with .156 board hole and .187 chassis hole. ASTM and RoHS compliant.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 22 Series Nylon Support Post is a reliable solution designed for easy installation and secure locking, providing stability to circuit boards. Crafted from Nylon 66 UL94V-2 material (UL94V-0 available), these support posts offer a color-coded natural finish. With a temperature range of -40 to 185F (-40 to 85C), they ensure consistent performance in varying conditions. Each post features a .156-inch board hole and a .187-inch chassis hole, accommodating different panel thicknesses. ASTM and RoHS compliant, these support posts meet high industry standards for quality and safety.

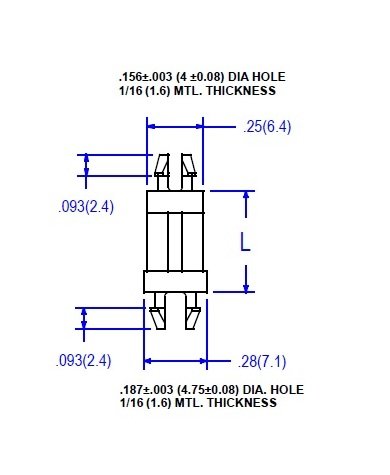

Product Specifications

Specifications Board Hole Diameter

.156 (4.0) inches (mm)

Specifications Chassis Hole Diameter

.187 (4.8) inches (mm)

Specifications Dim L

.750 (19.1) inches (mm)

Specifications Material Code

UL94V-2

Specifications Panel Thickness

.063 (1.6) inches (mm)

Specifications Remarks Panel Thickness

Panel thickness is for both ends.

22 Series Nylon Support Post .156 Board Hole x .187 Chassis Hole
