22 Series Nylon Support Post .156 Board Hole x .187 Chassis Hole
22 Series Nylon Support Post .156 Board Hole x .187 Chassis Hole
SKU:01C-d2d01a
Secure and durable 22 Series Nylon Support Post for circuit board applications. RoHS compliant and UL listed.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
22 Series Nylon Support Post .156 Board Hole x .187 Chassis Hole
$14.99
Quantity: 1
Claim Your Seller Account
22 Series Nylon Support Post .156 Board Hole x .187 Chassis Hole
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 22 Series Nylon Support Post is a reliable solution for circuit board support applications. Made of Nylon 66 UL94V-2 material, this support post ensures easy installation by hand and secure locking. Designed with a .156 inches board hole diameter and a .187 inches chassis hole diameter, it offers compatibility with standard panel thicknesses of .063 inches. This support post is RoHS compliant, UL listed, and ASTM D 4066 certified, ensuring durability and safety. With a temperature range of -40 to 185F, it is suitable for a wide range of environments.
Ready to Grow Without Cash Flow Constraints?

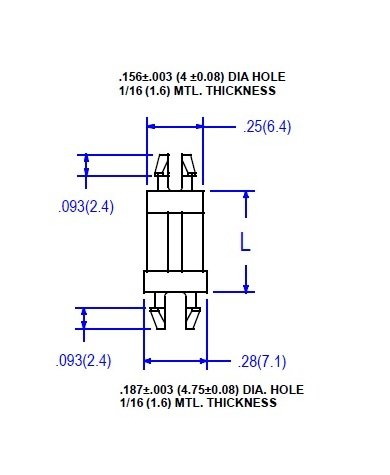

Product Specifications
Specifications Board Hole Diameter
.156 (4.0) inches (mm)
Specifications Chassis Hole Diameter
.187 (4.8) inches (mm)
Specifications Dim L
.687 (17.4) inches (mm)
Specifications Material Code
UL94V-2
Specifications Panel Thickness
.063 (1.6) inches (mm)
Specifications Remarks Panel Thickness
Panel thickness is for both ends.
