22 Series Nylon Support Post: .156 Board Hole x .187 Chassis Hole
22 Series Nylon Support Post: .156 Board Hole x .187 Chassis Hole
SKU:01C-7bb846
Securely support circuit boards with the 22 Series Nylon Post for precise fitting and durability.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
22 Series Nylon Support Post: .156 Board Hole x .187 Chassis Hole
$24.99
Quantity: 1
Claim Your Seller Account
22 Series Nylon Support Post: .156 Board Hole x .187 Chassis Hole
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 22 Series Nylon Support Post is designed for secure and easy installation on circuit boards. Crafted from Nylon 66 UL94V-2 material, it ensures reliability and durability in various applications. With a board hole diameter of .156 inches and a chassis hole diameter of .187 inches, this support post offers precise fitting and stability. Its temperature range of -40 to 185F enables consistent performance in diverse environments. Compliance with RoHS standards and ASTM D 4066 ensures safety and quality assurance for all users.
Ready to Grow Without Cash Flow Constraints?

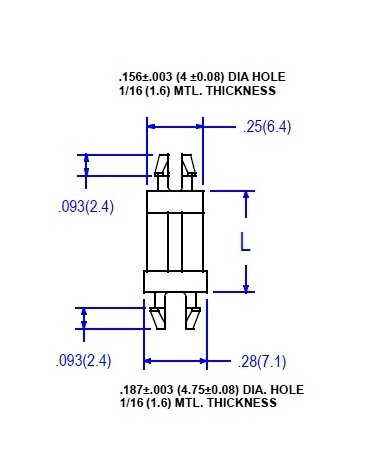

Product Specifications
Specifications Board Hole Diameter
.156 (4.0) inches (mm)
Specifications Chassis Hole Diameter
.187 (4.8) inches (mm)
Specifications Dim L
.437 (11.1) inches (mm)
Specifications Material Code
UL94V-2
Specifications Panel Thickness
.063 (1.6) inches (mm)
Specifications Remarks Panel Thickness
Panel thickness is for both ends.
