22 Series Nylon Support Post: .156 Board Hole x .187 Chassis Hole

Name: 22 Series Nylon Support Post: .156 Board Hole x .187 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-acec6a
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-acec6a

Durable Nylon support post with .156 board hole, .187 chassis hole. Secure locking, easy removal, RoHS compliant.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

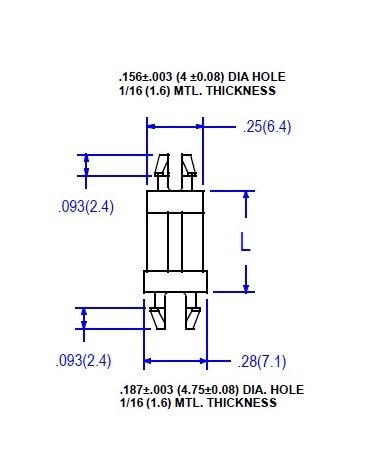

The 22 Series Nylon Support Post offers durable support for circuit boards, featuring a .156 board hole and .187 chassis hole. Made of Nylon 66 UL94V-2 material, this post ensures secure locking yet easy removal. It can withstand temperatures ranging from -40 to 185F. Each post is 1.00 inch long, suitable for panels with a thickness of .063 inches. With RoHS compliance and optional UL94V-0 material available, this support post is a reliable choice for various applications.

Product Specifications

Specifications Board Hole Diameter

.156 (4.0) inches (mm)

Specifications Chassis Hole Diameter

.187 (4.8) inches (mm)

Specifications Dim L

1.00 (25.4) inches (mm)

Specifications Material Code

UL94V-2

Specifications Panel Thickness

.063 (1.6) inches (mm)

Specifications Remarks Panel Thickness

Panel thickness is for both ends.
