22 Series Nylon Support Post with .156 Board Hole and .187 Chassis Hole

Name: 22 Series Nylon Support Post with .156 Board Hole and .187 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-9ac18b
Price: 24.99 USD
Availability: OutOfStock

SKU:01C-9ac18b

Securely install circuit board supports with the 22 Series Nylon Support Post. Easy to install and durable.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 22 Series Nylon Support Post is a versatile and reliable solution for secure installations in circuit board supports. Crafted from UL94V-2 Nylon 66 material, this support post ensures durability and safety. Its easy hand installation and secure locking mechanism make it ideal for various applications. With a temperature range of -40 to 185F (-40 to 85C), this support post guarantees performance in diverse environments. Meeting RoHS compliance standards, this product is available in a natural color and comes in a packaging of 500 posts per bag.

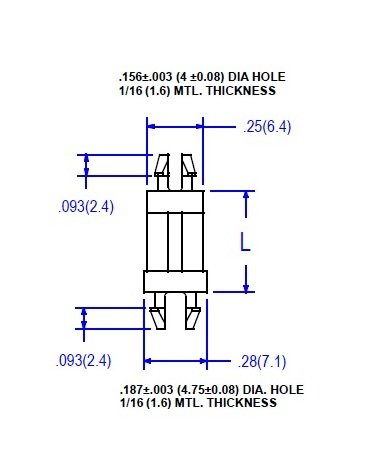

Product Specifications

Specifications Board Hole Diameter

.156 (4.0) inches (mm)

Specifications Chassis Hole Diameter

.187 (4.8) inches (mm)

Specifications Dim L

.937 (23.8) inches (mm)

Specifications Material Code

UL94V-2

Specifications Panel Thickness

.063 (1.6) inches (mm)

Specifications Remarks Panel Thickness

Panel thickness is for both ends.
