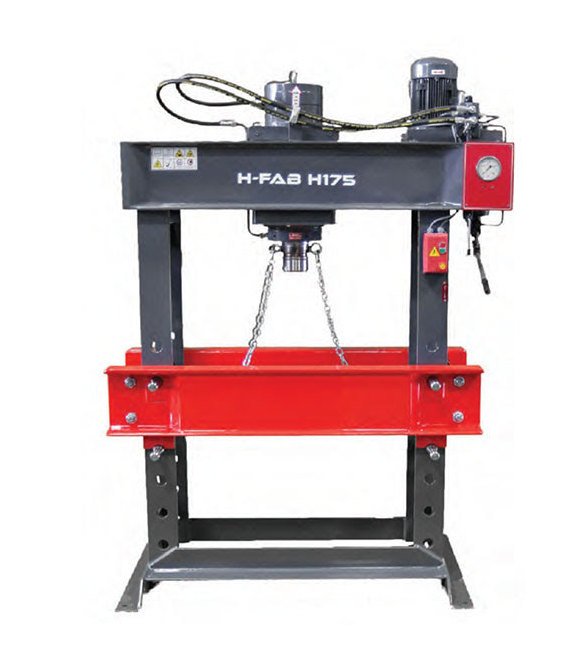

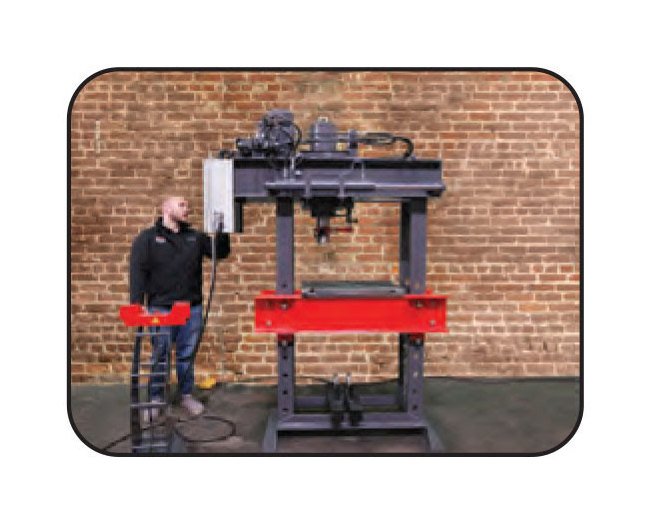

Enhance your workshop with the H-FAB H Series 220-Ton Workshop Hydraulic Press, featuring a durable steel welded frame, large ram stroke, chrome-plated cylinder, and two-speed hydraulics. This hydraulic press offers precision and reliability, with an adjustable pressure mechanism, optional palm buttons for automatic functions, and compatibility with various die sets. With components sourced from reputable brands like Rexroth, Parker, and Siemens, this press ensures quality and performance while meeting institutional procurement standards.
Product Specifications

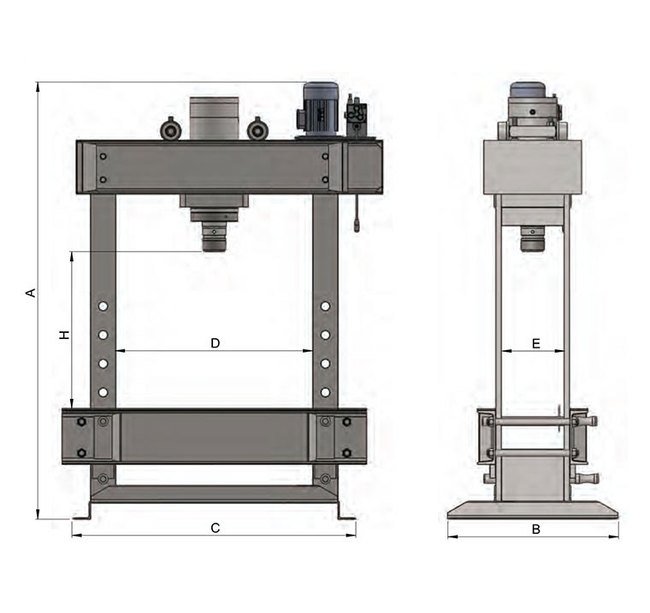

Dimensions Height A
112 in
Dimensions Width
83 in
Note
We do not source any component of our presses from China.
Optional Features

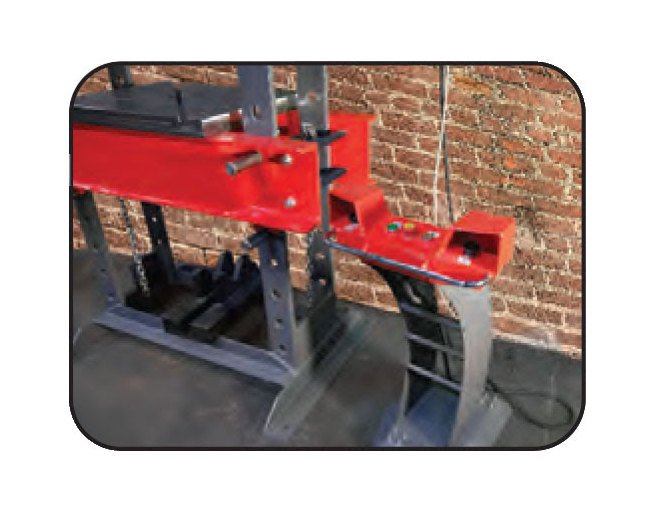

Pressure adjustmentPalm buttons, automatic functionsHydraulic movable cylinder motion by an additional hydraulic cylinderDie setsStroke, open height and widthsIncluded pressRolling bolstersPlatens
Specifications Capacity
220 US t
Specifications Clear Front D
51 in
Specifications Clear Side E
18 in
Specifications Daylight H
35.4 in
Specifications Down Speed
15 in/min
Specifications Foot Length B
47 in
Specifications Foot Width C
72 in

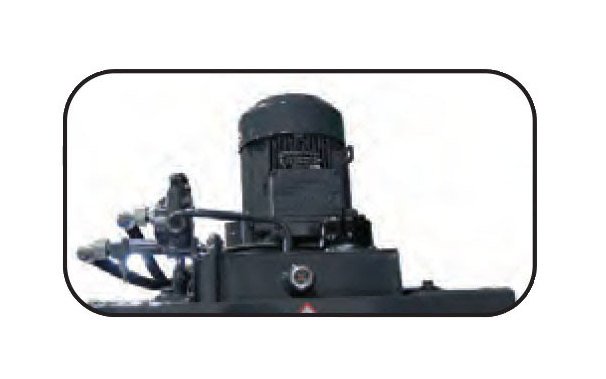

Specifications Motor Power
10 hp
Specifications Phase
3
Specifications Return Speed
27 in/min
Specifications Stroke
16 in
Specifications Type
Hydraulic
Specifications Weight
5,732 lb
Standard Features

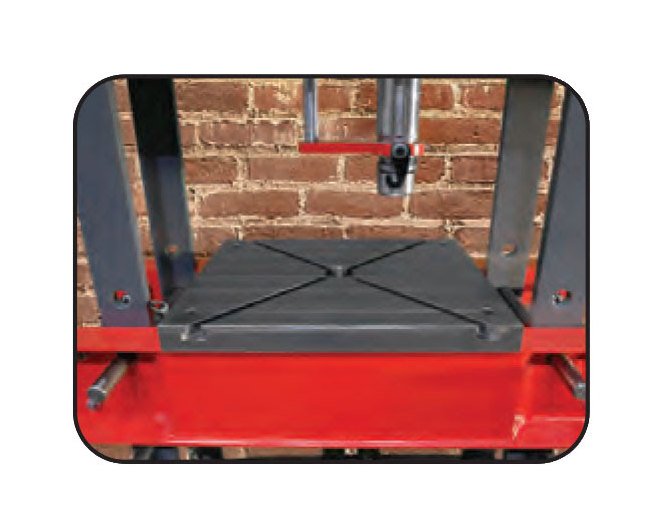

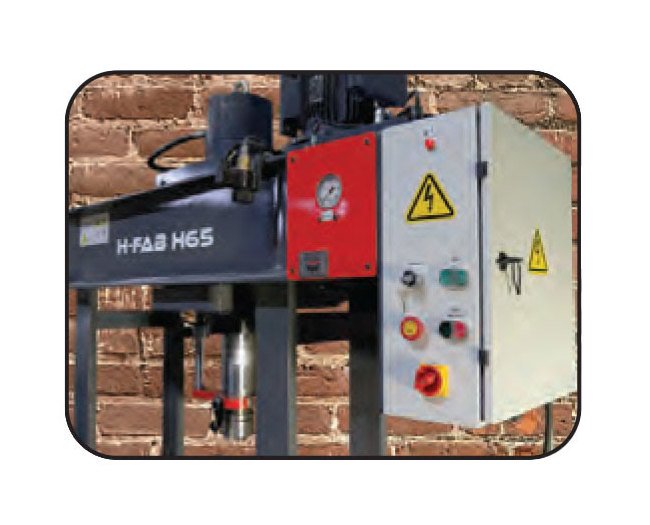

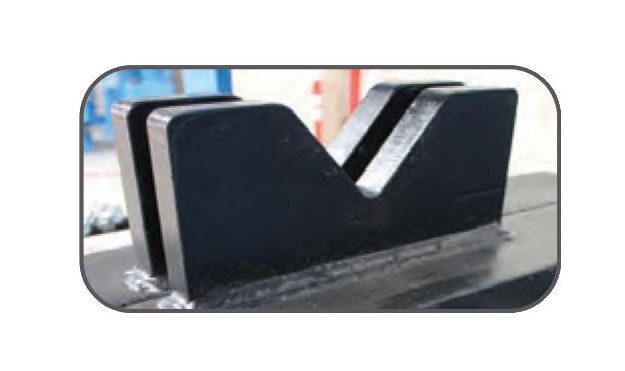

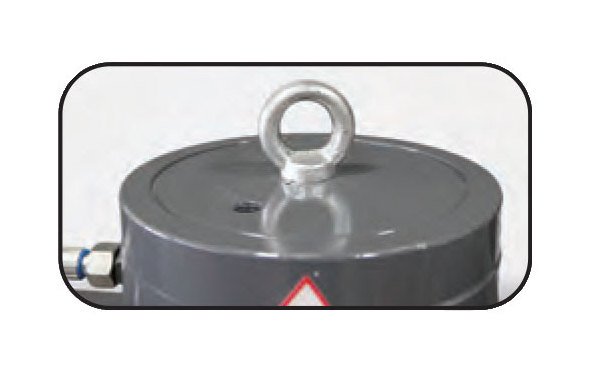

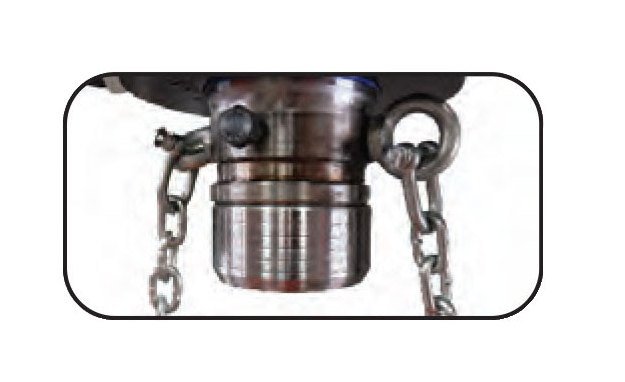

Chrome plated cylinderSteel welded frameOil pressure gaugePressure adjustment2 speed hydraulicsLarge ram strokeMovable cylinder (left to right)V-block with working plateCommon off the shelf components, typically of German or USA origin (Rexroth, Parker, Schneiders, and Siemens)
