2200 Gallon Horizontal Air Receiver Tank, 165 psi MAWP

Name: 2200 Gallon Horizontal Air Receiver Tank, 165 psi MAWP
Brand: Compressed Air Systems, Inc.
SKU: REC-926923
Price: 1999.99 USD
Availability: OutOfStock

SKU:REC-926923

High-quality 2200-gallon Horizontal Air Receiver Tank designed for industrial air compression with 165 psi MAWP.

$1,999.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

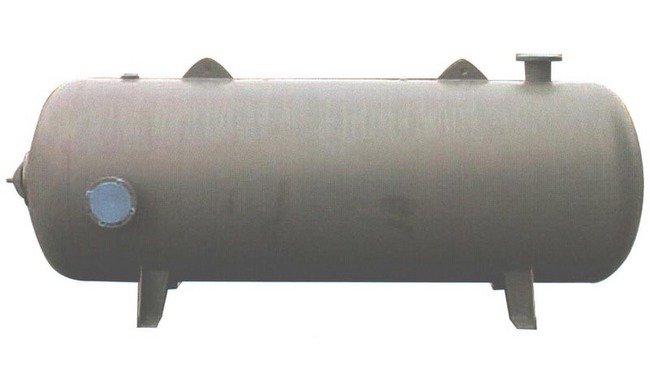

The 2200-gallon Horizontal Air Receiver Tank with a maximum allowable working pressure of 165 psi is a robust and reliable solution for industrial air compression needs. With a nominal capacity of 2200 gallons (294.12 ft³) and dimensions meeting industry standards, this receiver tank ensures optimal air storage and distribution efficiency. Its durable construction and precision engineering make it ideal for heavy-duty applications, providing consistent performance and longevity.

Product Specifications

Financing Approve Payments

Finance with Approve Payments

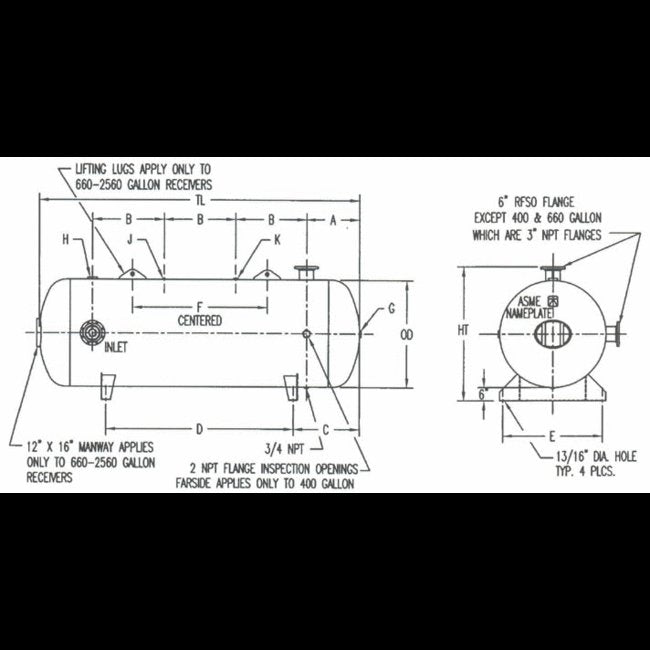

Specifications Dimension A

29.00 inches

Specifications Dimension B

44.00 inches

Specifications Dimension C

37.00 inches

Specifications Dimension D

116.00 inches

Specifications Dimension E

57.00 inches

Specifications Dimension F

98.00 inches

Specifications Ht

72.00 inches

Specifications Mawp

165 psi

Specifications Nominal Capacity

2200 gal | 294.12 ftÂ³

Specifications Npt Opening G

2 inches

Specifications Npt Opening H

3 inches

Specifications Npt Opening J

1/4 inches

Specifications Npt Opening K

1 inches

Specifications Od

60.00 inches

Specifications Tl

190.00 inches

Specifications Tw

4200

2200 Gallon Horizontal Air Receiver Tank, 165 psi MAWP
