220mm Stock F-Theta Lens for Precision Laser Systems
220mm Stock F-Theta Lens for Precision Laser Systems
SKU:STO-ba81d7
High-precision 220mm F-Theta Lens for laser systems, with 355/635 nm Wavelength, 110*110 mm Scan Field, and ±20.2° Scan Angle
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
220mm Stock F-Theta Lens for Precision Laser Systems
$499.99
Quantity: 1
Claim Your Seller Account
220mm Stock F-Theta Lens for Precision Laser Systems
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

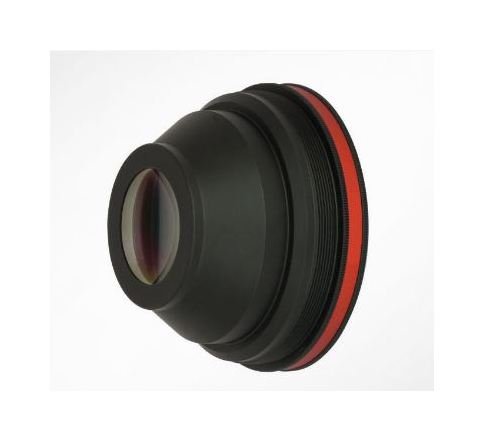

The SO-FT-110-220 Stock F-Theta Lens is engineered for precision laser systems, featuring a Wavelength of 355/635 nm, an Effective Focal Length of 220 mm, and a Scan Field of 110*110 mm. With a durable construction meeting robust institutional standards, this lens ensures accurate scans with a Scan Angle of ±20.2° and a Beam Diameter of 10 mm. Its precise design, including Mounting Threads of M85×1 and a Flange Distance of 234.3 mm, makes it ideal for government and institutional use.
Product Specifications
Specifications Beam Diameter
10 mm
Specifications Effective Focal Length
220 mm
Specifications Flange Distance
234.3 mm
Specifications M1 M2 Distance
13 mm
Specifications M2 Lens Center
27.99 mm
Specifications M2 Mountingthread
68.5 mm
Specifications Mounting Threads
M85Ã1
Specifications Scan Angle
±20.2 º
Specifications Scan Field
110*110 mm
Specifications Spot Size Diameter Center Edge
14.2-15.4 µm
Specifications Wavelength
355/635 nm
Specifications Working Distance
165.4 mm
