22CB500 Single Flange CB Elements
22CB500 Single Flange CB Elements
SKU:CLU-08567c
Enhance clutch performance with 22CB500 Single Flange CB Elements. Designed for durability and precision, compliant with Federal procurement standards.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
22CB500 Single Flange CB Elements
$1,299.99
Quantity: 1
Claim Your Seller Account
22CB500 Single Flange CB Elements
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your clutch system with the 22CB500 Single Flange CB Elements. With a torque rating of 62300 lb·in, maximum speed of 1250 rpm, and a durable design featuring 13 friction shoes, this component ensures reliable performance. The meticulously engineered dimensions and friction lining thickness enhance efficiency and longevity, making it ideal for industrial applications. Compliant with Federal procurement standards and industry certifications, this product is a premium choice for institutional buyers.

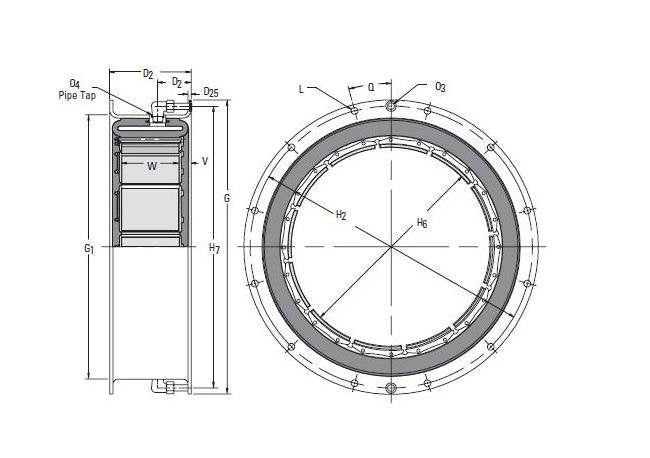

Product Specifications
Note 0
Refers to basic part number only. When ordering, the number of air inlets and type of connection must be specified.
Specifications Air Inlet Thread
3/8-18
Specifications Air Tube Cavity
190 in³ | 3.12 dm³
Specifications Angle Q
15.000 º
Specifications Bolt Hole Size L
0.500 in | 13 mm
Specifications Centrifugal Loss Constant Cs
1.93 E-06 bar/rpm2 | 28 E-06 psi/rpm2
Specifications Dimension D2
6.63 in | 168 mm
Specifications Dimension D24
2.50 in | 64 mm
Specifications Dimension D25
0.19 in | 5 mm
Specifications Dimension G
29.500 in | 749.3 mm
Specifications Dimension G1
26.75 in | 679 mm
Specifications Dimension H2
28.375 in | 720.7 mm
Specifications Dimension H6
22.19 in | 564 mm
Specifications Dimension H7
28.38 in | 721 mm
Specifications Dimension O3
0.38 in | 10 mm
Specifications Dimension V
0.81 in | 21 mm
Specifications Friction Area
312 in² | 2012 cm²
Specifications Friction Shoe Width W
5.00 in | 127 mm
Specifications Inertia
114 lb·ft² | 4.79 kg·m²
Specifications Maximum Speed
1250 rpm
Specifications Minimum Drum Diameter
21.87 in | 555 mm
Specifications New Friction Lining Thickness
0.26 in | 7 mm
Specifications Number Of Friction Shoes
13
Specifications Number Of Mounting Holes
12
Specifications Size
22CB500
Specifications Torque Rating 75 Psi55 Bar
62300 lb·in | 7040 Nm
Specifications Weight
95 lb | 43 kg
Specifications Worn Friction Lining Thickness
0.06 in | 2 mm
