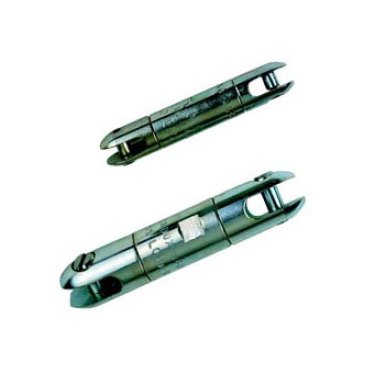

22mm Break-Away Swivel for Cable Pulling Applications
22mm Break-Away Swivel for Cable Pulling Applications
SKU:PUL-960646
A durable 22mm Break-Away Swivel for safe cable pulling in fiber optic and coaxial installations.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
22mm Break-Away Swivel for Cable Pulling Applications
$39.99
Quantity: 1
Claim Your Seller Account
22mm Break-Away Swivel for Cable Pulling Applications
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 7/8" (22 mm) Break-Away Swivel is a crucial component for fiber optic and coaxial cable pulling operations. With a robust break load capacity of 1600 pounds (7117 N), this swivel is engineered to separate at ±10% of its rated break load, safeguarding cables from damage. In the event of load exceedance, the interior break pin fractures, triggering a clean separation while ensuring cable integrity. Easy replacement of the break pin enhances the swivel's durability and longevity. Please note that these swivels are not intended for use around bullwheels.

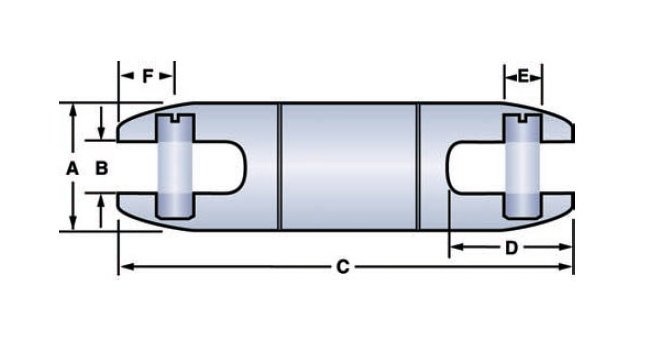

Product Specifications
Specifications Break Load Lb
1600
Specifications Break Load N
7117
Specifications Dimension A In
7/8
Specifications Dimension A Mm
22
Specifications Dimension B In
0.38
Specifications Dimension B Mm
10
Specifications Dimension C In
4.51
Specifications Dimension C Mm
115
Specifications Dimension D In
1.06
Specifications Dimension D Mm
27
Specifications Dimension E In
0.31
Specifications Dimension E Mm
8
Specifications Dimension F In
0.53
Specifications Dimension F Mm
13
