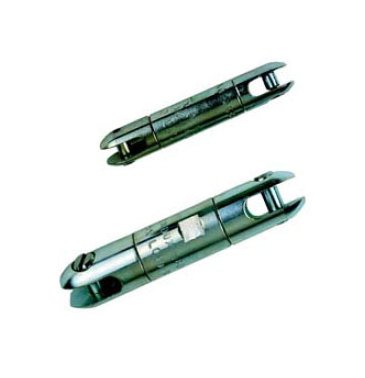

22mm Break-Away Swivel for Fiber Optic and Coaxial Cable Pulling
22mm Break-Away Swivel for Fiber Optic and Coaxial Cable Pulling
SKU:PUL-1b6043
Essential for fiber optic and coaxial cable pulling, this 22mm swivel separates at ±10% of its 1,800lb break load to protect cables from damage.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
22mm Break-Away Swivel for Fiber Optic and Coaxial Cable Pulling
$49.99
Quantity: 1
Claim Your Seller Account
22mm Break-Away Swivel for Fiber Optic and Coaxial Cable Pulling
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 7/8" (22mm) Break-Away Swivel is a crucial tool for fiber optic and coaxial cable pulling operations. Designed to handle break loads ranging from 150 to 1,800 pounds (667 - 8,006 N), this swivel is engineered to separate at ±10% of its rated break load. Should the load exceed the limit, the interior break pin fractures, allowing the swivel to separate and safeguard the cable from damage. With easily replaceable break pins, this swivel ensures uninterrupted cable pulling efficiency. Please note that these swivels should not be used around bullwheels.

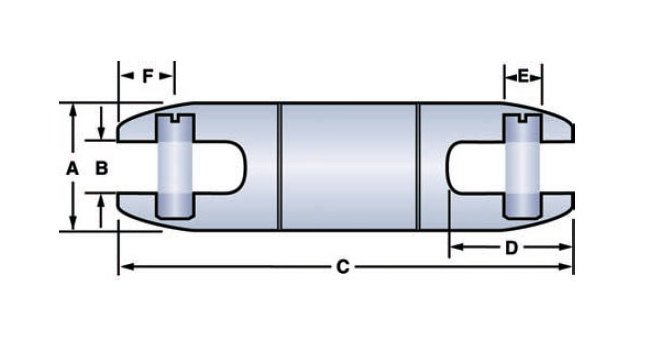

Product Specifications
Specifications Break Load Lb
200
Specifications Break Load N
890
Specifications Dimension A In
7/8
Specifications Dimension A Mm
22
Specifications Dimension B In
0.38
Specifications Dimension B Mm
10
Specifications Dimension C In
4.51
Specifications Dimension C Mm
115
Specifications Dimension D In
1.06
Specifications Dimension D Mm
27
Specifications Dimension E In
0.31
Specifications Dimension E Mm
8
Specifications Dimension F In
0.53
Specifications Dimension F Mm
13
