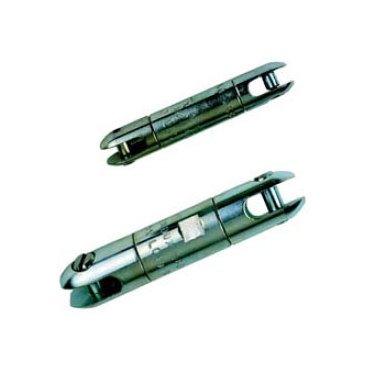

22mm Break-Away Swivel for Fiber Optic & Coaxial Cable Pulling
22mm Break-Away Swivel for Fiber Optic & Coaxial Cable Pulling
SKU:PUL-cc7c1b
Protect cables with the 22mm Break-Away Swivel, designed to separate at set loads without causing damage.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.


The 22mm Break-Away Swivel is a crucial tool for fiber optic and coaxial cable pulling applications. With a break load capacity of 600 lb (2669 N) and a ±10% break load separation design, this swivel ensures cable protection by separating when load limits are exceeded. The easily replaceable break pin enhances maintenance efficiency. Designed to prevent cable damage, this swivel is a reliable choice for demanding cable pulling tasks. Please note that this swivel is not intended for use around bullwheels.
Product Specifications
Specifications Break Load Lb
600
Specifications Break Load N
2669

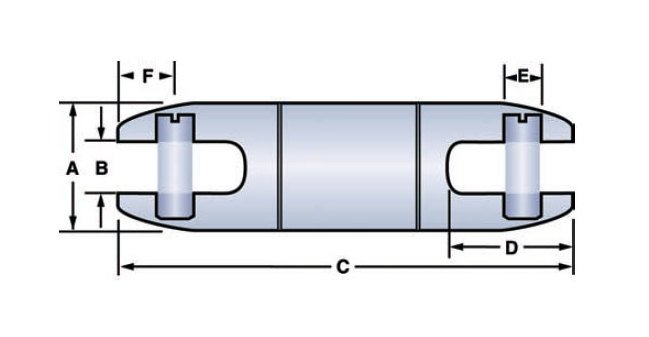

Specifications Dimension A In
7/8
Specifications Dimension A Mm
22
Specifications Dimension B In
0.38
Specifications Dimension B Mm
10
Specifications Dimension C In
4.51
Specifications Dimension C Mm
115
Specifications Dimension D In
1.06
Specifications Dimension D Mm
27
Specifications Dimension E In
0.31
Specifications Dimension E Mm
8
Specifications Dimension F In
0.53
Specifications Dimension F Mm
13
