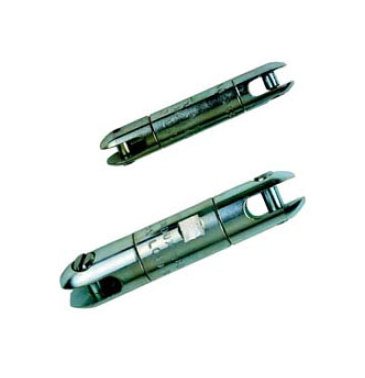

22mm Fiber Optic & Coaxial Cable Break-Away Swivel
22mm Fiber Optic & Coaxial Cable Break-Away Swivel
SKU:PUL-5fa615
Ensure cable safety with our 22mm Break-Away Swivel. Breaks at 700 lbs, protects cables from damage. Easy maintenance. Ideal for fiber optics & coaxial cables.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
22mm Fiber Optic & Coaxial Cable Break-Away Swivel
$39.99
Quantity: 1
Claim Your Seller Account
22mm Fiber Optic & Coaxial Cable Break-Away Swivel
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 22mm Break-Away Swivel is a crucial tool for fiber optic and coaxial cable pulling applications. With a break load of 700 pounds (3114 N) and a ±10% separation tolerance, it ensures the safety of your cables. In case of excess load, the interior break pin fractures, allowing the swivel to detach while protecting the cable. Easily replaceable break pin for quick maintenance. Note: Not suitable for running around bullwheels.

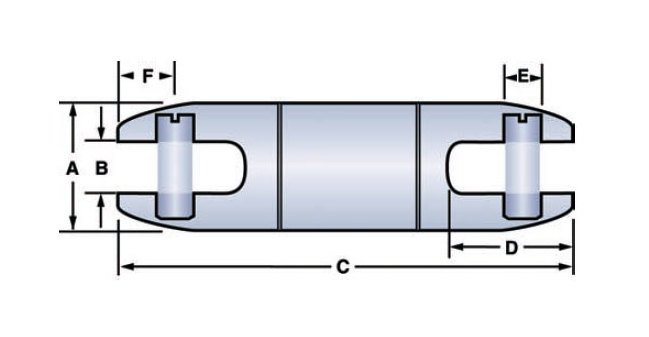

Product Specifications
Specifications Break Load Lb
700
Specifications Break Load N
3114
Specifications Dimension A In
7/8
Specifications Dimension A Mm
22
Specifications Dimension B In
0.38
Specifications Dimension B Mm
10
Specifications Dimension C In
4.51
Specifications Dimension C Mm
115
Specifications Dimension D In
1.06
Specifications Dimension D Mm
27
Specifications Dimension E In
0.31
Specifications Dimension E Mm
8
Specifications Dimension F In
0.53
Specifications Dimension F Mm
13
