23-Inch Constant Force Spring - Load 0.71 lb

23-Inch Constant Force Spring - Load 0.71 lb

CON-60444b

High-performance 0.71 lb Constant Force Spring for precise industrial applications

$39.99
$39.99
Sale

Initiate Order

23-Inch Constant Force Spring - Load 0.71 lb

23-Inch Constant Force Spring - Load 0.71 lb

$39.99

Quantity: 1

Claim Your Seller Account

23-Inch Constant Force Spring - Load 0.71 lb

23-Inch Constant Force Spring - Load 0.71 lb

$39.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

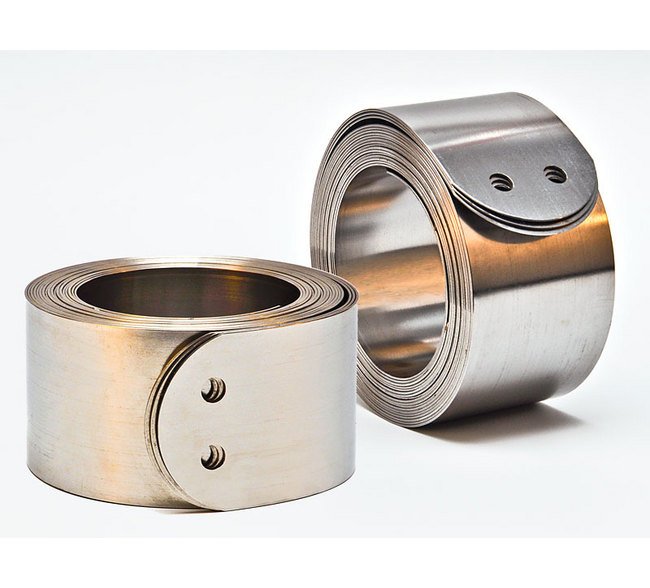

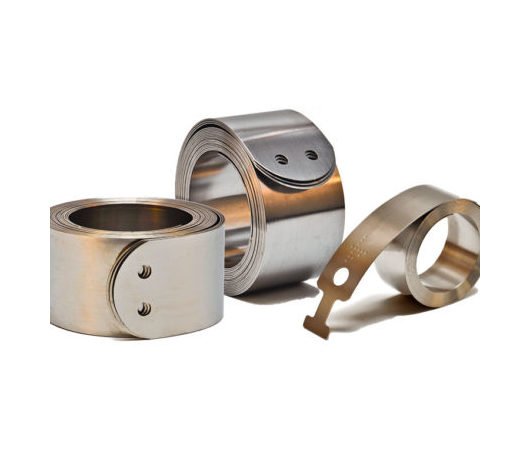

Experience top-tier constant force spring performance with the 0.71 lb load and 23-inch band length spring from John Evans' Sons. Crafted from high-grade 301 stainless steel, this reliable spring offers a maximum work deflection of 18 inches and a fatigue life of 13,000 cycles. Ideal for aerospace, medical devices, and defense applications.

Product Specifications

Additional Information Additional Information
Our constant force springs and assemblies can eliminate costly and complicated motors, decreasing your device size and cost. These types of springs provide:Smooth, even, uniform load through entire length or travel (deflection)Strong force yield within small spacesExtensive linear rangeSmall package sizeAbility to easily mount to existing hardware
Design Considerations For Constant Force Springs Design Consider
There are many design factors that will affect the time and cost needed to manufacture your spring. Therefore, it’s important to work with a manufacturer like John Evans’ Sons that has the knowledge needed in the design phase.Mounting Methods: There are several mounting methods. Your application will determine which mounting method is best for your spring’s design.Material: Material will certainly affect the design and project cost. High temperatures or corrosive environments will also affect the life of a spring and the required material.Diameter and Load: Length, material width, thickness, and coil diameter affect the spring’s load. Increased loads can be obtained by using two or more constant force springs interwound, in tandem, or in other configurations.All of these, plus other technical considerations, need to be discussed and specified prior to creating prototypes. Our design engineering team can help ensure calculations and configurations are exact in the design phase.Our springs are most often used in the following industries and applications:AerospaceMedical devicesWindowsDefenseElectric motorsNot sure if constant force springs can provide the right action for your product? Contact John Evans' Sons for more information.
Note Note
The constant force springs listed below are available in small quantities from our stocking distributor, Stock Drive Products (SDP), or in larger quantities direct from our factory. For engineers and designers involved prototype development, who may require quick delivery of small quantities.
Specifications Band Length
23 in
Specifications Fatigue Life
13,000 cycles
Specifications Free Inside Diameter Id
0.672 in
Specifications Load
0.71 lb
Specifications Materials
301 Stainless Steel

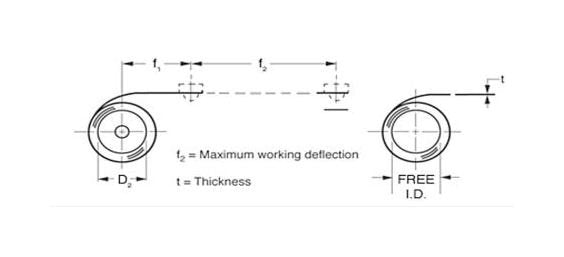

Specifications Maximum Work Deflection
18 in
Specifications Thickness
0.006 in

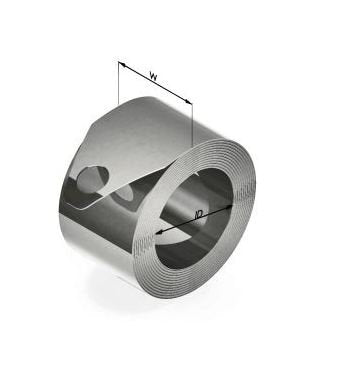

Specifications Width
0.375 in
