23 Series Support Post (6-32 Thread) - Nylon UL94V-2, .156 Board Hole
23 Series Support Post (6-32 Thread) - Nylon UL94V-2, .156 Board Hole
SKU:01C-7a0540
Secure circuit boards with the 23 Series Support Post, featuring a 6-32 thread and Nylon UL94V-2 construction. RoHS compliant and ASTM D 4066 certified.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
23 Series Support Post (6-32 Thread) - Nylon UL94V-2, .156 Board Hole
$25.99
Quantity: 1
Claim Your Seller Account
23 Series Support Post (6-32 Thread) - Nylon UL94V-2, .156 Board Hole
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

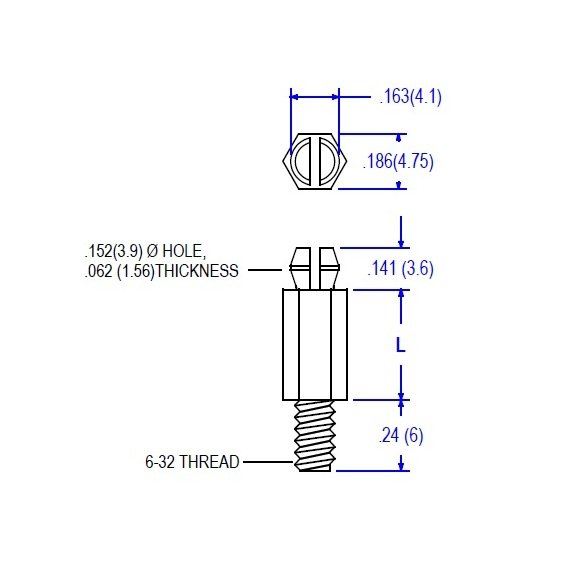

The 23 Series Support Post is a male threaded post designed with a 6-32 thread, ideal for securing circuit boards. Crafted from Nylon 66 UL94V-2 material, this support post ensures durability and reliability in various applications. With a .156-inch board hole diameter and compatibility with AEH Hex Nut #12-00-632, this post offers secure mounting solutions. Meeting ASTM D 4066 and PA111 standards, it guarantees quality and performance. RoHS compliant and resistant to temperatures ranging from -40 to 185F, making it suitable for diverse environmental conditions.
Product Specifications
Specifications Board Thickness
.062 (1.57) inches (mm)
Specifications Dim L
.187 (4.8) inches (mm)
Specifications Material Code
UL94V-2
Specifications Mounting Hole Diameter
.156 (4.0) inches (mm)
