The 24-inch Paddle Spacer is a sturdy and durable component designed for ASME Class 150 line blinds and bleed rings. Crafted from carbon steel to ensure reliability under varying pressure and temperature conditions, this spacer meets stringent industry standards including ASME and ISO certifications. With operating pressures of 285 psi at 100°F for water, oil, and gas applications, this Sure Flow equipment is primed with a shop primer and offers various surface finish options for customization. Ensure seamless piping system operations with this precise and compliant Paddle Spacer.
Product Specifications
Additional Information Additional Information
Sure Flow Equipment Line Blind thicknesses are based on ASME B16.48 specifications and are designed to withstand any pressure - temperature combination that an ASME flange will withstand.One coat of standard shop primer will be applied to all carbon steel Line Blinds unless specified differently.Mill finish is standard. Other surface finishes are available. Contact factory for options. Standard materials are: SA516 Gr.70304 Stainless Steel316 Stainless Steel Other alloys can be furnished upon requestSure Flow Equipment Line Blinds are produced in strict accordance with the following codes of practice: ASME B16.48ASME B16.5ASME B16.20ASME B16.47 (For larger diameter flanges)

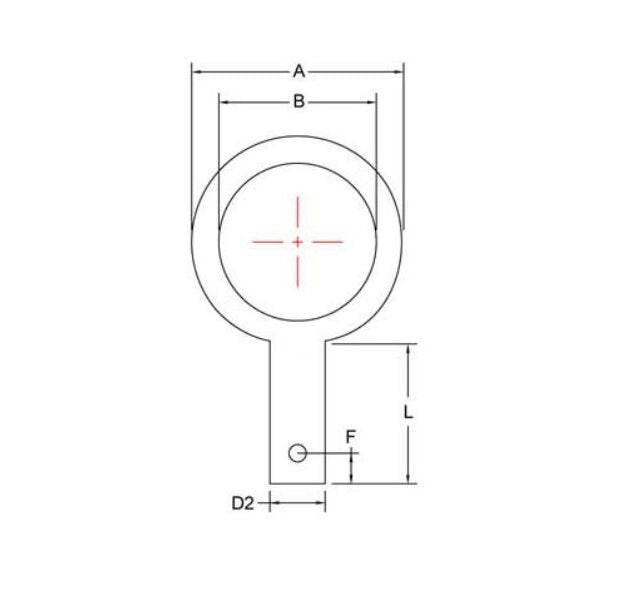

Dimensions Diameter E
1 3/8 in
Dimensions Dimension A
28 1/8 in
Dimensions Dimension B
24 in
Dimensions Dimension C
29 1/2 in
Dimensions Dimension D1
5 1/2 in
Dimensions Dimension D2
1 1/2 in
Dimensions Dimension F
1 in
Dimensions Dimension L
5 in
Dimensions Size
24 in
Dimensions Thickness
1 1/4 in
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 150 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Higher ASME pressure ratings availableLarger sizes availableManufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
285 psi
Operating Pressures And Temperatures Pressure At 366 Degree Fahr
150 psi
Specifications Material
Carbon Steel
Specifications Prefix Size
2400
