24 Inch Barred Tee with Buttweld End Connections
24 Inch Barred Tee with Buttweld End Connections
SKU:BAR-2eb874
High-quality 24 Inch Barred Tee for secure Pig passage in pipeline systems with ASME Class 150 standards compliance.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
24 Inch Barred Tee with Buttweld End Connections
$1,899.99
Quantity: 1
Claim Your Seller Account
24 Inch Barred Tee with Buttweld End Connections
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 24 Inch Barred Tee with Buttweld End Connections is expertly crafted to meet the rigorous demands of industrial projects. With a pressure rating of 1440 psi at 100°F for water, oil, and gas applications, this tee ensures secure passage of the Pig in pipeline systems. Fabricated from top-grade Alloy, Carbon Steel, or Stainless Steel, it adheres to ASME Class 150 standards and ISO 9001:2008 certifications, guaranteeing exceptional quality and performance. Custom-fitted bar sections welded to the branch prevent damage and facilitate smooth operations, while optional Flanged Connections and extended pup-pieces offer versatile installation choices.
Product Specifications
Additional Information Additional Information

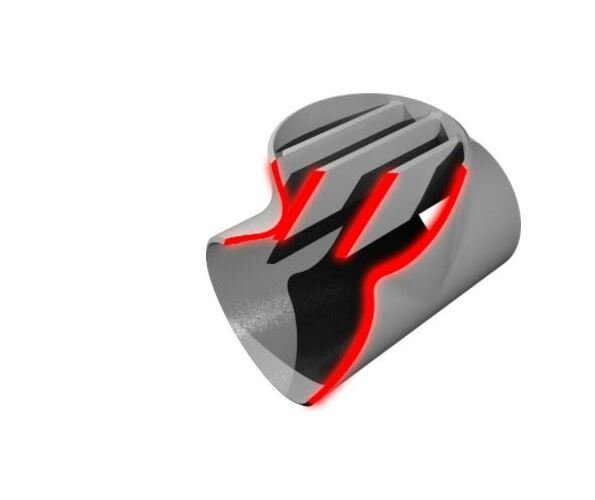

Custom fitted bar sections are welded to the branch of the buttweld Tee. The bars are added to ensure the Pig passes by the branch opening. Bar spacing is designed to prevent damage to the functional elements of the Pig.Buttweld End Connections are standard. Optional Flanged Connections in raised face or RTJ, as well as extended pup-pieces, are available. Barred Tees are used in a pipeline Launcher/Receiver system and at any branch in the pipeline to ensure safe passage of the Pig.
Construction Construction

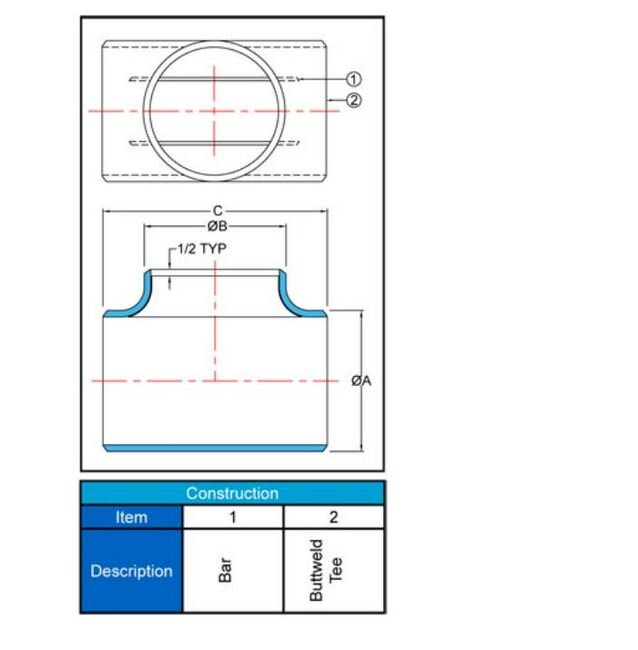

Item - 1Description - BarItem - 2Description - Buttweld Tee
Dimensions Dimension C
34 in
Dimensions Size
24 in
Dimensions Thickness At 10 Inch In Branch Size And 2 Bar
1/2 in
Dimensions Thickness At 12 Inch In Branch Size And 3 Bar
1/2 in
Dimensions Thickness At 14 Inch In Branch Size And 2 Bar
1/2 in
Dimensions Thickness At 16 Inch In Branch Size And 3 Bar
1/2 in
Dimensions Thickness At 18 Inch In Branch Size And 3 Bar
1/2 in
Dimensions Thickness At 20 Inch In Branch Size And 3 Bar
1/2 in
Dimensions Thickness At 24 Inch In Branch Size And 3 Bar
1/2 in
Dimensions Thickness At 2 Inch In Branch Size And 1 Bar
1/2 in
Dimensions Thickness At 3 Inch In Branch Size And 1 Bar
1/2 in
Dimensions Thickness At 4 Inch In Branch Size And 1 Bar
1/2 in
Dimensions Thickness At 6 Inch In Branch Size And 1 Bar
1/2 in
Dimensions Thickness At 8 Inch In Branch Size And 1 Bar
1/2 in
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 150 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Higher ASME pressure ratings available Larger sizes availableManufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
1440 psi
Operating Pressures And Temperatures Pressure At 489 Degree Fahr
600 psi
Specifications Material
Alloy | Carbon Steel | Stainless Steel
Specifications Prefix Size
2400
