24 Inch Clear Acrylic Pass-Through Desiccator Cabinet
24 Inch Clear Acrylic Pass-Through Desiccator Cabinet
SKU:SIX-4c7053
Maintain controlled environments with precision using the 24 Inch Clear Acrylic Pass-Through Desiccator Cabinet. Durable, reliable, and customizable for your laboratory needs.
Regular price
$1,599.99
Regular price
Sale price
$1,599.99
Unit price
per
Initiate Order
24 Inch Clear Acrylic Pass-Through Desiccator Cabinet
$1,599.99
Quantity: 1
Claim Your Seller Account
24 Inch Clear Acrylic Pass-Through Desiccator Cabinet
$1,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

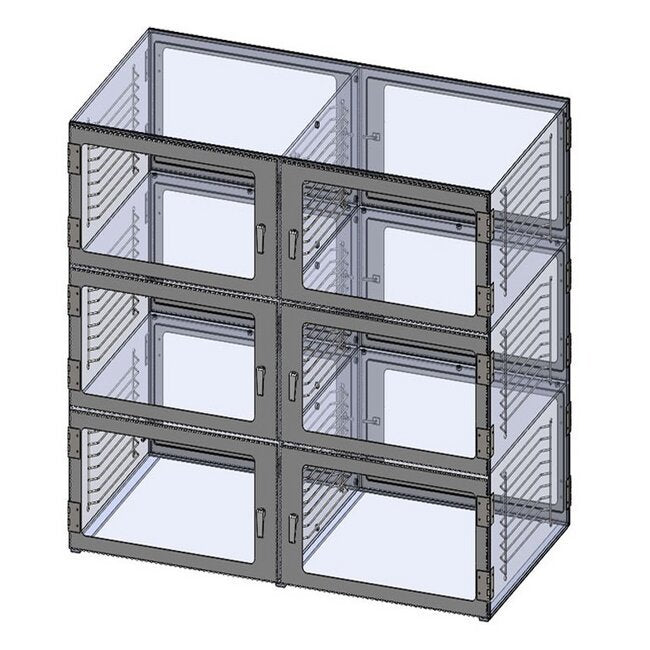

The 24 Inch Clear Acrylic Six Chamber Pass-Through Desiccator Cabinet offers a reliable solution for maintaining a controlled environment in laboratory settings. With dimensions of 48" W x 36" H x 24" D and internal usable space of 22.125" D x 11.75" H, this cabinet features a sturdy clear acrylic construction ensuring visibility and durability. Each chamber, measuring 24" W x 24" D x 12" H, includes a stainless steel door frame, wire shelving racks, and a secure Santoprene seal. Optional accessories like Gas-in Port, Pressure Relief Valve, and Automatic Purge Control Unit enhance functionality, making it ideal for scientific and research applications.
Product Specifications
Additional Information Additional Information
Stainless steel door frame and door hinge.Stainless steel wire rack for shelving. A pair of wire racks is needed for each chamber and are optional if there are no shelves.Metal lift-and-turn latch.Single-piece Santoprene seal.
Applications 0
Pass-Through Chambers
Options Options
Gas-in Port & Pressure Relief Valve (1/4" OD tubing fitting)One-Channel Automatic Purge Control Unit (PCU) with one humidity sensor.Flowmeter with an external valve mount. Flowmeter range is from 2-20 SCFH air. (It is not required if you order a PCU.)Big Digit Hygro-Thermometer (Humidity range: 10% to 99 % RH/ Temperature range: 14º F to 140º F)Small Digit Hygro-Thermometer (Humidity range: 10% to 99 % RH/ Temperature range: 14º F to 140º F)Epoxy powder coated steel stand with caster (including two locking). Available in 30'' and 35'' height with an optional upgrade to leveling mounts.Perforated stainless steel, acrylic or static-dissipative PVC shelves. (Wire racks are required for shelf placement.)Cam lock with an option to have the same or different key for each door. Please note that the price for the cam lock is per door.Stainless steel locking bracket for use with a padlock. Please note that the price for the locking bracket is per door.Stainless steel bottom plate installed on the bottom of each chamber.Chambers can either be interconnected using a perforated chamber divider or isolated to maintain a controlled environment.
Specifications Chamber Depth
24 in
Specifications Chamber Height
12 in
Specifications Chamber Width
24 in
Specifications Door Opening Height
10.1875 in
Specifications Door Opening Width
22.375 in
Specifications Internal Usable Space Depth
22.125 in
Specifications Internal Usable Space Height
11.75 in
Specifications Material
Clear Acrylic
Specifications Number Of Chambers
6
Specifications Overall Depth
24 in
Specifications Overall Height
36 in
Specifications Overall Width
48 in
Specifications Usable Area Shelf Space Depth
21.5 in
Specifications Usable Area Shelf Space Width
21.5 in
