24 Inch (in) Inlet (I) Full Sized Exhaust Silencer
24 Inch (in) Inlet (I) Full Sized Exhaust Silencer
SKU:EXH-0c6c4c
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
24 Inch (in) Inlet (I) Full Sized Exhaust Silencer
$49.99
Quantity: 1
Claim Your Seller Account
24 Inch (in) Inlet (I) Full Sized Exhaust Silencer
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Muffler to Quite Noise From High Velocity Steam and Air Atmospheric Venting.When steam, air, and other gases are vented to atmosphere at high velocities noise is created. Typically the higher the velocity the louder the noise level. Penn makes two models of Exhaust Silencers to reduce noise levels. Our "SP" full sized unit provides maximum noise reductions of 34-46 dB(A).
Product Specifications

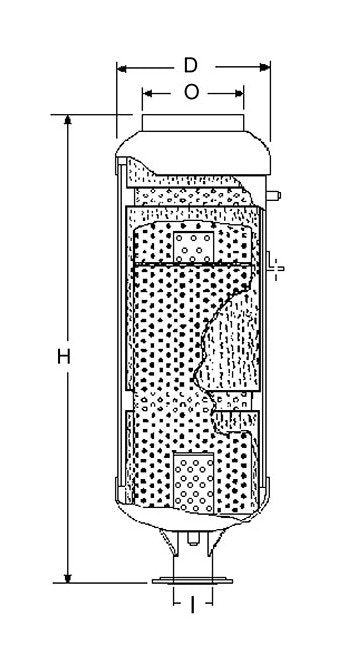

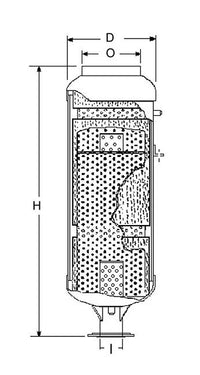

Sizing And Dimensions Diameter D
54 in
Sizing And Dimensions Flange Weight
5,600 lb
Sizing And Dimensions Height H
288 in
Sizing And Dimensions Inlet I
24 in
Sizing And Dimensions Maximum Air Pressure
190,000 scfm
Sizing And Dimensions Maximum Steam
380,000 lb/hr
Sizing And Dimensions Outlet O
48 in
Sizing And Dimensions Reduction Air
46.7
