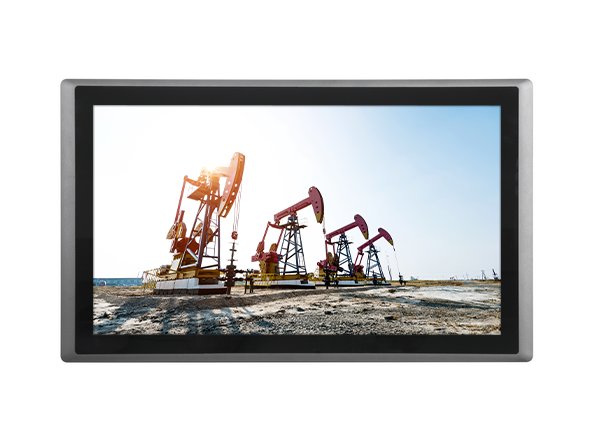

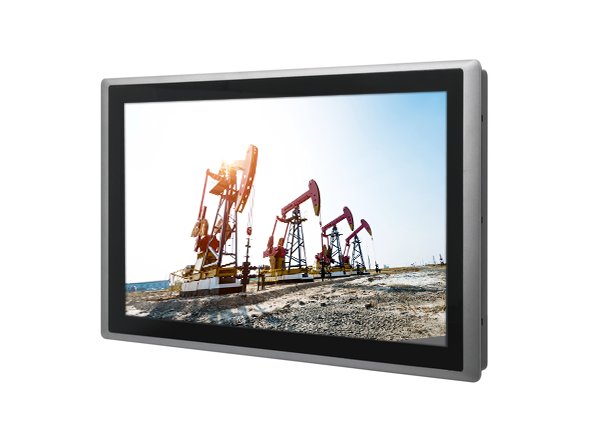

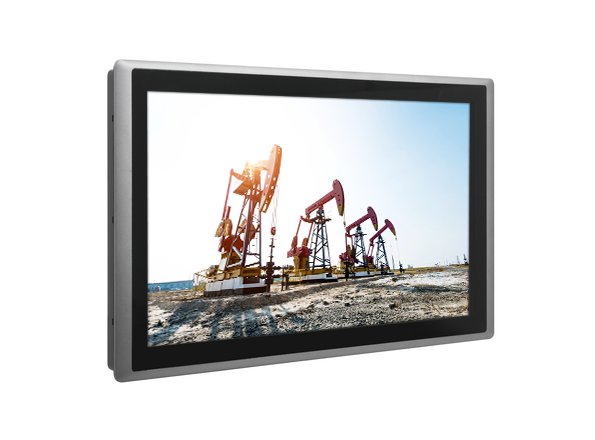

Experience exceptional computing performance with the CS-W124C-R10/P2202-i5-R10 24" Sunlight Readable Panel PC. Powered by the 12th Gen. Intel Core i5-1245UE Processor, this modular panel PC features a 1500 nits Full HD display, Projected Capacitive Touch technology, and a wide range of I/O ports for seamless connectivity. With a rugged aluminum construction, high brightness display, and innovative CDS technology, this panel PC ensures reliability, durability, and efficient operation in challenging environments.
Product Specifications
Additional Information Additional Information
Excellent Computing PerformanceThe CS-100/P2202 series is equipped with the 12th Gen Intel® Core⢠i5/i3 U-series (Alder Lake-P) processor based on the Intel® 7 process. The U-series has a low power consumption of only 15W, boasts excellent performance with up to 10 Coreâ¢s (2P+8E), and includes the built-in Intel® Iris® Xe graphics to easily handle image classification inference performance in AI deep learning.CDS Patented TechnologyCincoze® Convertible Display System (CDS) patented technology makes field-side maintenance and future upgrades easier. Replacing a display or improving system performance only requires replacing a single component, which significantly cuts upgrade costs.Patent No. M482908Complete Range of SizesThe CS-100/P2202 series offers a variety of display options, with screen sizes from 12 to 24 inches, support for up to full HD resolution, high brightness up to 1,800 nits, and multi-point P-Cap touchscreen, which can be selected according to application needs.Wide Temps, Safe, ReliableIn order to overcome the harsh outdoor environment and unpredictable climate, the CS-100/P2202 series has a series of industrial-grade protections, including a wide operating temperature range (-20°C to 70°C) that beats the industry standard and an IP65 dustproof/water resistant front panel to ensure a high degree of product safety.
Audio Audio Codec
Realtek® ALC888, High Definition Audio
Audio Line Out
1x Line-Out, Phone Jack 3.5 mm
Audio Mic In
1x Mic-in, Phone Jack 3.5 mm
Cs W124 Ambient Operating Temperature With Air Flow Cs W124
-20 to 70 ºC
Cs W124 Backlight Mean Time Between Failures Mtbf Cs W124
50,000 h
Cs W124 Brightness Cs W124
1500 cd/m²
Cs W124 Contrast Ratio Cs W124
5000:1
Cs W124 Depth Cs W124
373 mm
Cs W124 Electromagnetic Compatibility Emc Cs W124
European Conformity (CE) | Federal Communications Commission (FCC) | Interference-Causing Equipment Standard 003 (ICES-003 Class A) | United Kingdom Conformity Assessed (UKCA)
Cs W124 Electromagnetic Interference Emi Cs W124
CISPR 32 Conducted & Radiated: Class AEN/BS EN 55032 Conducted & Radiated: Class AEN/BS EN IEC 61000-3-2 Harmonic current emissions: Class AEN/BS EN61000-3-3 Voltage fluctuations & flickerFCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
Cs W124 Environmental Management System Ems Cs W124
EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kVEN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/mEN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kVEN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kVEN/IEC 61000-4-6 CS: 3VEN/IEC 61000-4-8 PFMF: 50 Hz, 1A/mEN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
Cs W124 Front Panel Protection Cs W124
IP 65 Compliant
Cs W124 Height Cs W124
63.2 mm
Cs W124 Liquid Crystal Display Lcd Color Cs W124
16.7M
Cs W124 Liquid Crystal Display Lcd Size Cs W124
24 in | 16:9
Cs W124 Maximum Resolution Cs W124
1920 x 1080 (Full HD)
Cs W124 Mechanical Construction Cs W124
Flat Rugged Aluminum Die-casting Front Bezel
Cs W124 Non Condensing Relative Humidity Rh At 40 Degree Celsius
80 %
Cs W124 Pixel Pitch Horizontal Cs W124
0.27675 mm
Cs W124 Pixel Pitch Vertical Cs W124
0.27675 mm
Cs W124 Safety Cs W124
Canadian Underwriters Laboratories (cUL) | Certification Body (CB) | European Norm (EN 62368-1) | International Electrotechnical Commission (IEC) | Underwriters Laboratories (UL)
Cs W124 Storage Temperature Cs W124
-30 to 80 ºC
Cs W124 Touchscreen Type Cs W124
Projected Capacitive
Cs W124 Power Consumption Cs W124
48.51 W
Cs W124 Viewing Angle Horizontal Vertical H V Cs W124
178/178
Cs W124 Weight Cs W124
6.64 kg
Cs W124 Width Cs W124
605 mm
Environment Electromagnetic Compatibility Emc
CE, UKCA, FCC, ICES-003 Class AEN IEC 61000-6-4, EN IEC 61000-6-2 (24VDC Input Only)
Environment Electromagnetic Interference Emi
CISPR 32 Conducted & Radiated: Class AEN/BS EN 55032 Conducted & Radiated: Class AEN/BS EN IEC 61000-3-2 Harmonic current emissions: Class AEN/BS EN61000-3-3 Voltage fluctuations & flickerFCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
Environment Environmental Management System Ems
EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kVEN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/mEN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kVEN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kVEN/IEC 61000-4-6 CS: 10VEN/IEC 61000-4-8 PFMF: 50 Hz, 30A/mEN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz
Physical Depth
190 mm
Physical Height
41.5 mm
Physical Width
254.5 mm
Power Power Button
1x ATX Power On/Off Button
Power Power Input
9 to 48 VDC, 3-Pin Terminal Block
Power Power Mode Switch
1x AT/ATX Mode Switch
Power Remote Power Onoff
1x Remote Power On/Off, 2-pin Terminal Block
Reliability And Protection Over Voltage Protection
Protection Range: 51~58VProtection Type: shut down operating voltage, re-power on at the present level to recover
Reliability And Protection Reverse Power Input Protection
Yes
