24 Inch Tee Type Strainer for Pipeline Protection
24 Inch Tee Type Strainer for Pipeline Protection
SKU:TEM-2bb050
Custom fabricated 24-inch Tee Type Strainer for pipeline protection, ensuring pump and valve safety. Compliant with ISO 9001:2008.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
24 Inch Tee Type Strainer for Pipeline Protection
$599.99
Quantity: 1
Claim Your Seller Account
24 Inch Tee Type Strainer for Pipeline Protection
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

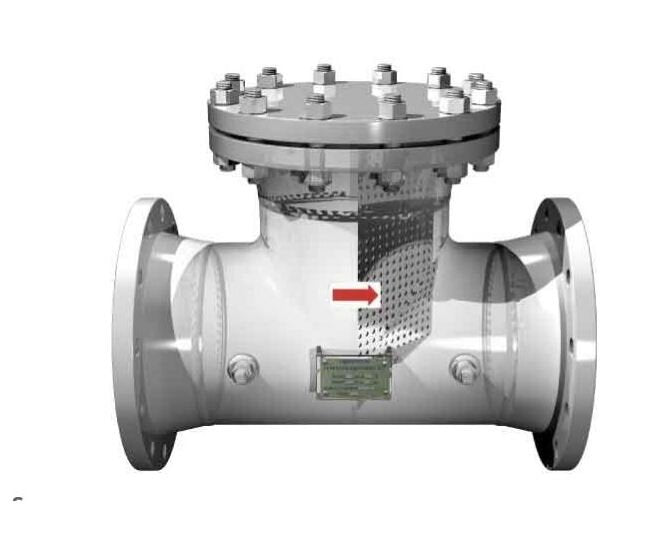

The 24 Inch Tee Type Strainer is a custom fabricated solution designed to effectively remove foreign particles from pipelines, ensuring optimal protection for pumps, valves, and equipment. Constructed with carbon or stainless steel, this strainer can also be customized with optional materials and accessories. Compliant with ISO 9001:2008 standards, this strainer offers versatile configurations to meet various operational needs, making it an ideal choice for institutional and government procurement requirements.
Product Specifications
Additional Information Additional Information

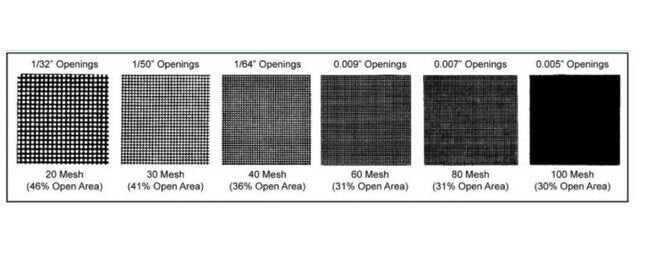

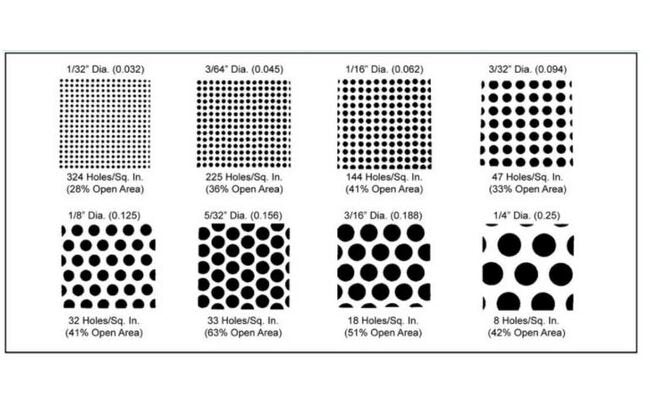

When ordering specify:Type - Straight Flow, Angled Flow, Angled ModifiedNominal Pipe SizeFlange Rating and FacingPressure Rating and FacingCorrosion Conditions, if any (type of materialPerforation (particle retention)

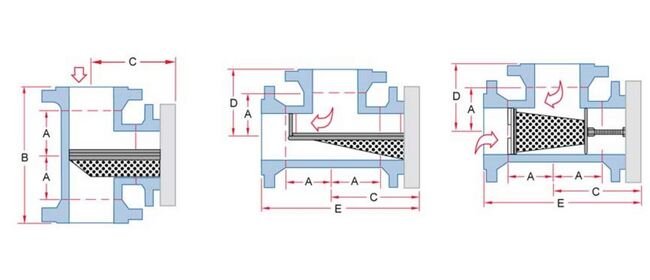

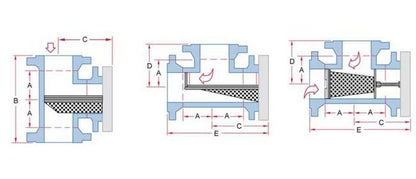

Dimensions Dimension A
17 in
Dimensions Dimension B For American Society Of Mechanical Engine
66 1/2 in
Dimensions Dimension C For American Society Of Mechanical Engine
41 5/8 in
Dimensions Dimension D For American Society Of Mechanical Engine
33 1/4 in
Dimensions Dimension E For American Society Of Mechanical Engine
74 7/8 in
Dimensions Pipe Size
24 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Flanges and bodies are designed to meet Section 1 of American Standard Code for Pressure Piping, ASA B31.1.Manufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.
