24" Industrial Panel PC with Intel Core i5, Full HD Display & Projected Capacitive Touch
24" Industrial Panel PC with Intel Core i5, Full HD Display & Projected Capacitive Touch
SKU:IND-1d9c2f
High-performance 24" Industrial Panel PC with Intel Core i5, Full HD Display & Projected Capacitive Touch. Ideal for demanding industrial environments.
Regular price
$1,799.99
Regular price
Sale price
$1,799.99
Unit price
per
Initiate Order
24" Industrial Panel PC with Intel Core i5, Full HD Display & Projected Capacitive Touch
$1,799.99
Quantity: 1
Claim Your Seller Account
24" Industrial Panel PC with Intel Core i5, Full HD Display & Projected Capacitive Touch
$1,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

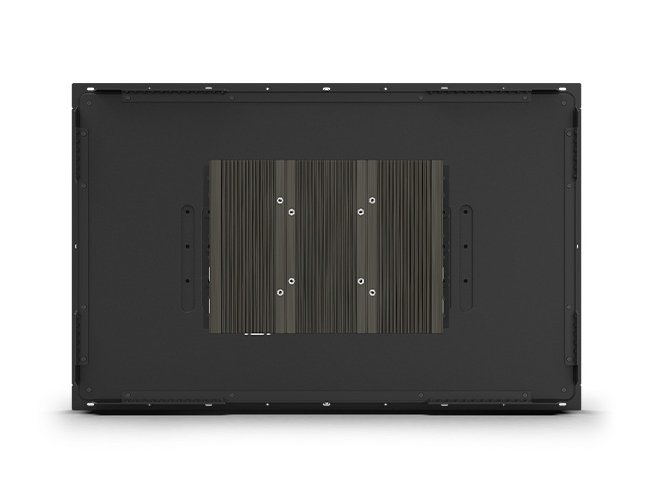

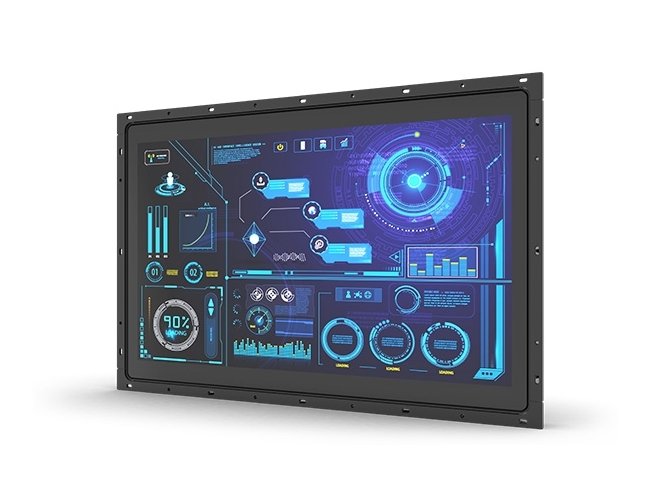

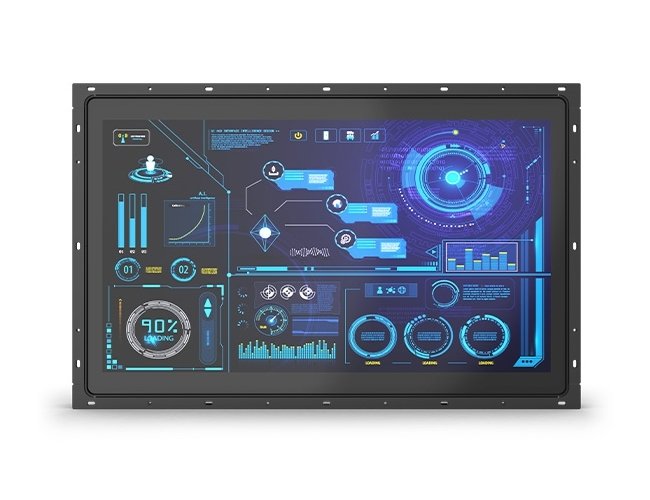

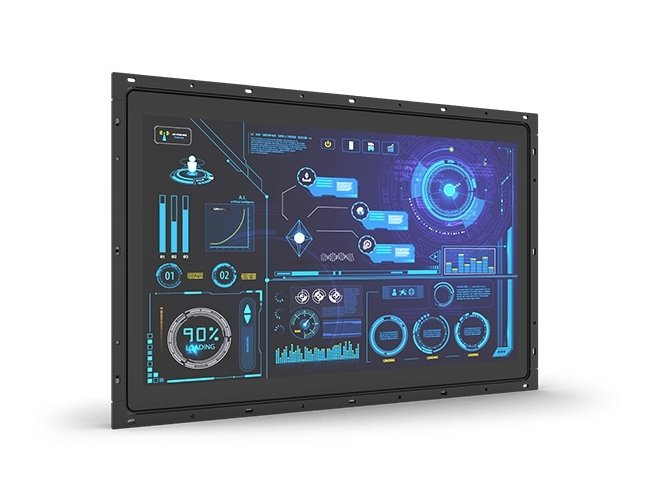

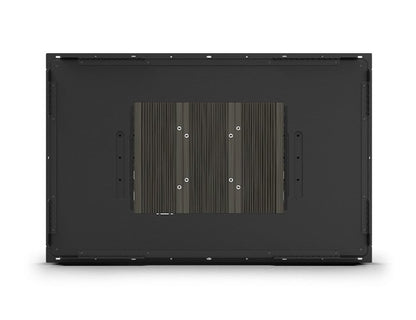

The CO-W124C-R10/P2202-i5-R10 is a high-performance Industrial Panel PC designed for both consumer and institutional buyers. It features a 24" Full HD TFT-LCD Open Frame Display with a powerful 12th Gen. Intel Core i5-1245UE Processor. With advanced features like Quad Independent Display support, Modular design, and a Projected Capacitive Touchscreen, this Panel PC delivers exceptional computing performance in demanding industrial environments. Its rugged construction, wide operating temperature range, and industrial-grade protections ensure reliability and longevity.
Product Specifications
Additional Information Additional Information
Excellent Computing PerformanceThe CO-100/P2202 series is equipped with the 12th Gen Intel® Core⢠i5/i3 U-series (Alder Lake-P) processor based on the Intel® 7 process. The U-series has a low power consumption of only 15W, boasts excellent performance with up to 10 Coreâ¢s (2P+8E), and includes the built-in Intel® Iris Xe graphics to easily handle image classification inference performance in AI deep learning.CDS Patented TechnologyCincoze® Convertible Display System (CDS) patented technology makes field-side maintenance and future upgrades easier. Replacing a display or improving system performance only requires replacing a single component, which significantly cuts upgrade costs.Patent No. M482908Easy to InstallThe exclusive adjustable mounting bracket (Patent No.: I802427) has thickness adjustment options and supports multiple locking methods (panel and boss types), providing a simpler and more convenient integration for industrial machines using flat mount and standard mount.Patent No.: D224544, D224545, I802427Integrated StructureThe flexible and reliable design of the open-frame architecture enables deployment in equipment machines, and after removing the mounting bracket can be installed directly using the VESA mount for standalone use, or installed in a 19â rack for display function.Rugged, Safe, ReliableThe CO-100/P2202 series features a series of industrial-grade protections, such as a fanless design, wide operating temperature range (0°C to 60°C), wide range DC power input (9 to 48VDC), and IP65 dustproof/water resistant front panel for field-side HMI applications in harsh industrial environments.
Audio Audio Codec
Realtek® ALC888, High-Definition Audio
Audio Line Out
1x Line-out, Phone Jack 3.5mm
Audio Mic In
1x Mic-in, Phone Jack 3.5 mm
Co W124c Backlight Light Emitting Diode Led Life Time Co W124c
50000 h
Co W124c Brightness Co W124c
300 cd/m²
Co W124c Construction Co W124c
One-Piece and Slim Bezel Design
Co W124c Contrast Ratio Co W124c
5000:1
Co W124c Depth Co W124c
387.2 mm
Co W124c Electromagnetic Compatibility Emc Co W124c
European Conformity (CE) | Federal Communications Commission (FCC) | Interference-Causing Equipment Standard 003 (ICES-003 Class A) | United Kingdom Conformity Assessed (UKCA)
Co W124c Electromagnetic Interference Emi Co W124c
CISPR 32 Conducted & Radiated: Class AEN/BS EN 55032 Conducted & Radiated: Class AEN/BS EN IEC 61000-3-2 Harmonic current emissions: Class AEN/BS EN61000-3-3 Voltage fluctuations & flickerFCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
Co W124c Environmental Management System Ems Co W124c
EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kVEN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/mEN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kVEN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kVEN/IEC 61000-4-6 CS: 3VEN/IEC 61000-4-8 PFMF: 50 Hz, 1A/mEN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
Co W124c Height Co W124c
63.3 mm
Co W124c Ingress Protection Co W124c
Front Panel IP65 Compliant According to IEC60529
Co W124c Liquid Crystal Display Lcd Color Co W124c
16.7M
Co W124c Liquid Crystal Display Lcd Size Co W124c
24 in | 16:9
Co W124c Mounting Bracket Co W124c
Pre-Installed Mounting Bracket with Adjustable Design (Support 11 different stages of adjustment)
Co W124c Mounting Type Co W124c
Flat | Rack Mount | Standard | Video Electronics Standards Association (VESA)
Co W124c Non Condensing Relative Humidity Rh At 50 Degree Celsiu
80 %
Co W124c Note For Operating Temperature Co W124c
With Industrial Grade peripherals; Ambient with air flow
Co W124c Operating Temperature Co W124c
-20 to 70 ºC
Co W124c Pixel Pitch Horizontal Co W124c
0.27675 mm
Co W124c Pixel Pitch Vertical Co W124c
0.27675 mm
Co W124c Resolution Co W124c
1920 x 1080
Co W124c Storage Temperature Co W124c
-30 to -80 ºC
Co W124c Touchscreen Type Co W124c
Projected Capacitive Touch
Co W124c Viewing Angle Horizontal Vertical H V Co W124c
178/178
Co W124c Width Co W124c
604 mm
Environment Electromagnetic Compatibility Emc
CE, UKCA, FCC, ICES-003 Class AEN IEC 61000-6-4, EN IEC 61000-6-2 (24VDC Input Only)
Physical Depth
190 mm
Physical Height
41.5 mm
Physical Width
254.5 mm
Power Inrush Current Peak At 24 Volt V Voltage
5.381 A
Power Maximum Power Consumption
OS Idle Mode: 49.66 WFull Loading: 95.06 W
Power Power Button
1x ATX Power On/Off Button
Power Power Input
9 to 48 VDC, 3-Pin Terminal Block
Power Power Mode Switch
1x AT/ATX Mode Switch
Power Remote Power Onoff
1x Remote Power On/Off, 2-pin Terminal Block
Reliability And Protection Over Voltage Protection
Protection Range: 51~58VProtection Type: shut down operating voltage, re-power on at the present level to recover
Reliability And Protection Reverse Power Input Protection
Yes
