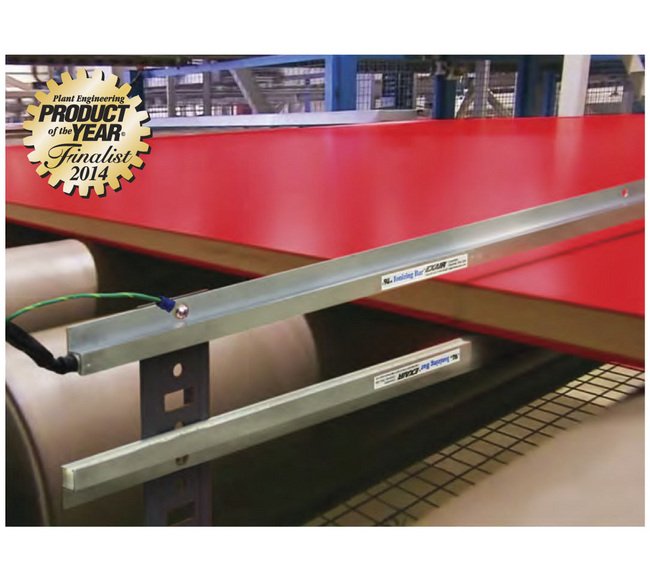

The 24 Inch Ionizing Bar from EXAIR is a high-performance solution for eliminating static electricity on various surfaces, including paper, film, and plastics. This electrically powered bar produces a high concentration of positive and negative ions, ensuring rapid static decay within a 2-inch radius. Its compact design fits seamlessly into machinery to neutralize charges at the source. Made of durable aluminum with stainless steel emitters, this bar is equipped with a 5 kVrms power supply and UL-rated components for safe and efficient static elimination. Ideal for industrial environments, it solves issues such as dust attraction, product damage, and static-related hazards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Advantages
Compact | Easy to Install, Equipped with Mounting Flange | Effective up to 2 inch (51 mm) | Fully Assembled | Low Cost | Low Maintenance | Rapid Static Decay | Rugged Design for Industrial Environments | Shockless, Non-Radioactive
Specifications Applications
Bag Making - Form and Fill | Converting Machinery | Hard to Reach Places or Obstructed Surfaces | Labeling | Neutralizing Shrink Wrap | Neutralizing Slitting Operations | Packaging | Product Moving at High Speeds | Screen Printing | Sheet Fed and Web Presses | Surfaces with an Extremely High Charge | Textiles
Specifications Certifications
Ionizing Bars are UL Component Recognized to U.S. and Canadian safety standards. Power supplies are Underwriters Laboratories (UL) Listed to U.S. and Canadian safety standards, and are European Conformity (CE) and Restriction Of Hazardous Substances (RoHs) Compliant.
Specifications Emitters Material
Stainless Steel
Specifications Included Accessories
5' (1.52 m) Length of Shielded Cable | Assembled Connector
Specifications Ionizing Bar Channel Material
Aluminum
Specifications Length
24 in | 610 mm
Specifications Maximum Ambient Temperature
165 ºF | 74 ºC
Specifications Maximum Distance
2 in | 51 mm
Specifications Plastic Parts Grading
UL rated 94 HB
Specifications Power Supply
5 kVrms, 5 milliamperes (maximum) power supply.
Specifications Problems Solved With Static Eliminators
Dust clinging to product | Hazardous sparks or shocks | Materials tearing, jamming or curling | Product clinging to itself, rollers, machine beds or frames | Sheet feeding problems
