24 Series Miniature Circuit Board Supports
24 Series Miniature Circuit Board Supports
SKU:01C-bc6a41
Secure and durable 24 Series Miniature Circuit Board Supports crafted from UL94V-2 Nylon 66 material for electronic assemblies. RoHS compliant with snap-fit design and precise dimensions.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
24 Series Miniature Circuit Board Supports
$39.99
Quantity: 1
Claim Your Seller Account
24 Series Miniature Circuit Board Supports
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 24 Series Miniature Circuit Board Supports are essential components for securing circuit boards in electronic assemblies. Crafted from UL94V-2 Nylon 66 material (UL94V-0 option available), these support posts exhibit superior strength and durability. Featuring a snap-fit design on one end and snap-lock on the other, they ensure secure positioning. With a board hole diameter of .152 inches (4.0mm) and a panel thickness of .063 inches (1.6mm), these supports are compatible with various board and panel sizes. Meeting RoHS compliance and ASTM D 4066 standards, they are suitable for a temperature range of -40 to 185F (-40 to 85C). Packaged in quantities of 1000 per bag, these supports are ideal for industrial and institutional applications requiring reliable circuit board mounting solutions.

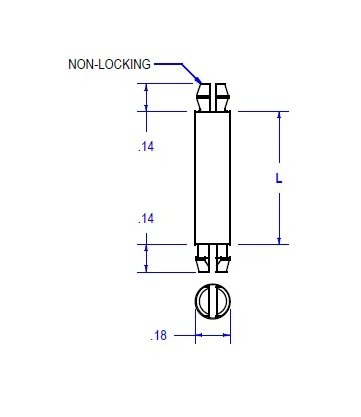

Product Specifications
Specifications Board Hole Diameter
.152 ± .005 (4.0) inches (mm)
Specifications Dim L
1.25± .010 (31.7) inches (mm)
Specifications Material Code
UL94V-2
Specifications Panel Thickness
.063 ± .005 (1.6) inches (mm)
Specifications Remarks Board Hole Diameter
Board Hole Diameter is for both ends.
Specifications Remarks Panel Thickness
Panel thickness is for both ends.
