24 Series Miniature Support Posts - Nylon 66 UL94V-2, Pack of 1000

Name: 24 Series Miniature Support Posts - Nylon 66 UL94V-2, Pack of 1000
Brand: All Electronics Hardware
SKU: 01C-48480d
Price: 49.99 USD
Availability: OutOfStock

SKU:01C-48480d

Secure and durable 24 Series Miniature Support Posts for circuit boards, Nylon 66 UL94V-2, Pack of 1000.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance your circuit board supports with our 24 Series Miniature Support Posts. These posts feature a snap-fit design on one end and snap-lock on the other, ensuring secure installation. Made of durable Nylon 66 UL94V-2 material with the option for UL94V-0 for added safety. With a board hole diameter of .152 inches and a panel thickness of .063 inches, these posts offer precision and reliability. RoHS compliant and ASTM D4066, PA111 certified, these support posts meet stringent industry standards for quality and safety. Operating temperature range from -40 to 185F (-40 to 85C) ensures performance in various environments.

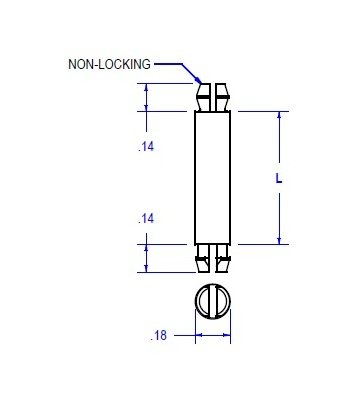

Product Specifications

Specifications Board Hole Diameter

.152 ± .005 (4.0) inches (mm)

Specifications Dim L

.375± .010 (9.5) inches (mm)

Specifications Material Code

UL94V-2

Specifications Panel Thickness

.063 ± .005 (1.6) inches (mm)

Specifications Remarks Board Hole Diameter

Board Hole Diameter is for both ends.

Specifications Remarks Panel Thickness

Panel thickness is for both ends.

24 Series Miniature Support Posts - Nylon 66 UL94V-2, Pack of 1000
