24 Series Miniature Support Posts (UL94V-0)
24 Series Miniature Support Posts (UL94V-0)
SKU:01C-e87b92
Secure your circuit boards with precision using 24 Series Miniature Support Posts. Made of Nylon 66 UL94V-0 material, ensuring durability and safety. RoHS compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
24 Series Miniature Support Posts (UL94V-0)
$29.99
Quantity: 1
Claim Your Seller Account
24 Series Miniature Support Posts (UL94V-0)
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

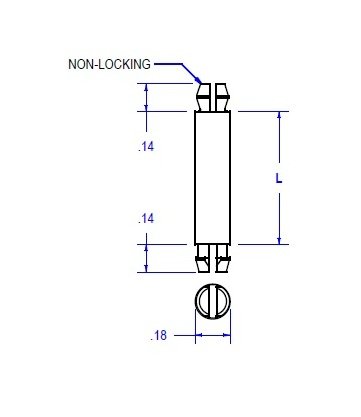

The 24 Series Miniature Support Posts are expertly crafted with precision, featuring a .152 board hole diameter and .152 chassis side for secure installations. These posts boast snap-fit one end and snap-lock the other end for easy setup. Made from high-grade Nylon 66 UL94V-0 material, they ensure superior durability and safety. Compliant with RoHS standards, ASTM D 4066, and PA111 specifications, these posts offer a temperature range of -40 to 185F (-40 to 85C), making them ideal for a wide range of applications.
Product Specifications
Specifications Board Hole Diameter
.152 ± .005 (4.0) inches (mm)
Specifications Dim L
.437± .010 (11.1) inches (mm)
Specifications Material Code
UL94V-0
Specifications Panel Thickness
.063 ± .005 (1.6) inches (mm)
Specifications Remarks Board Hole Diameter
Board Hole Diameter is for both ends.
Specifications Remarks Panel Thickness
Panel thickness is for both ends.
